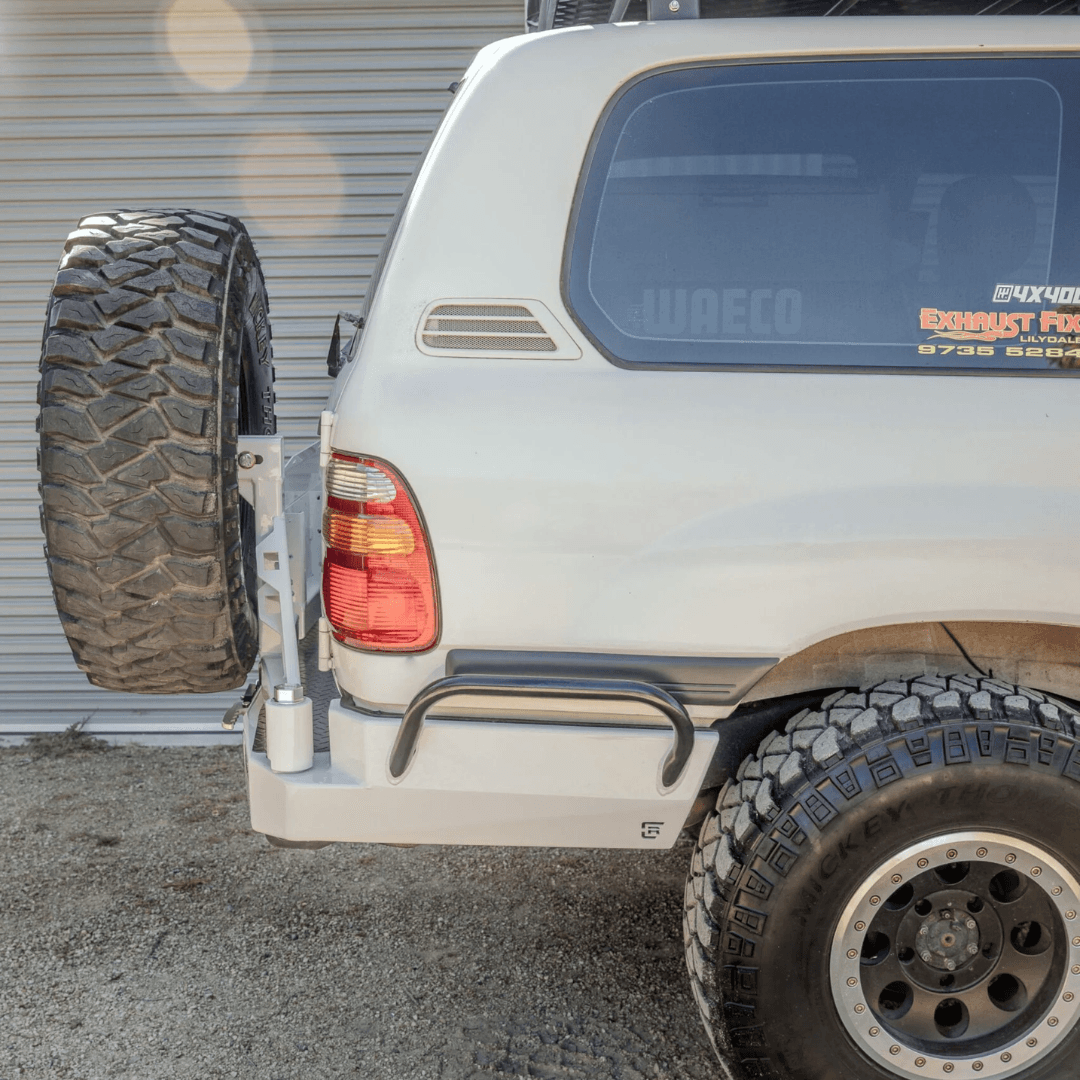

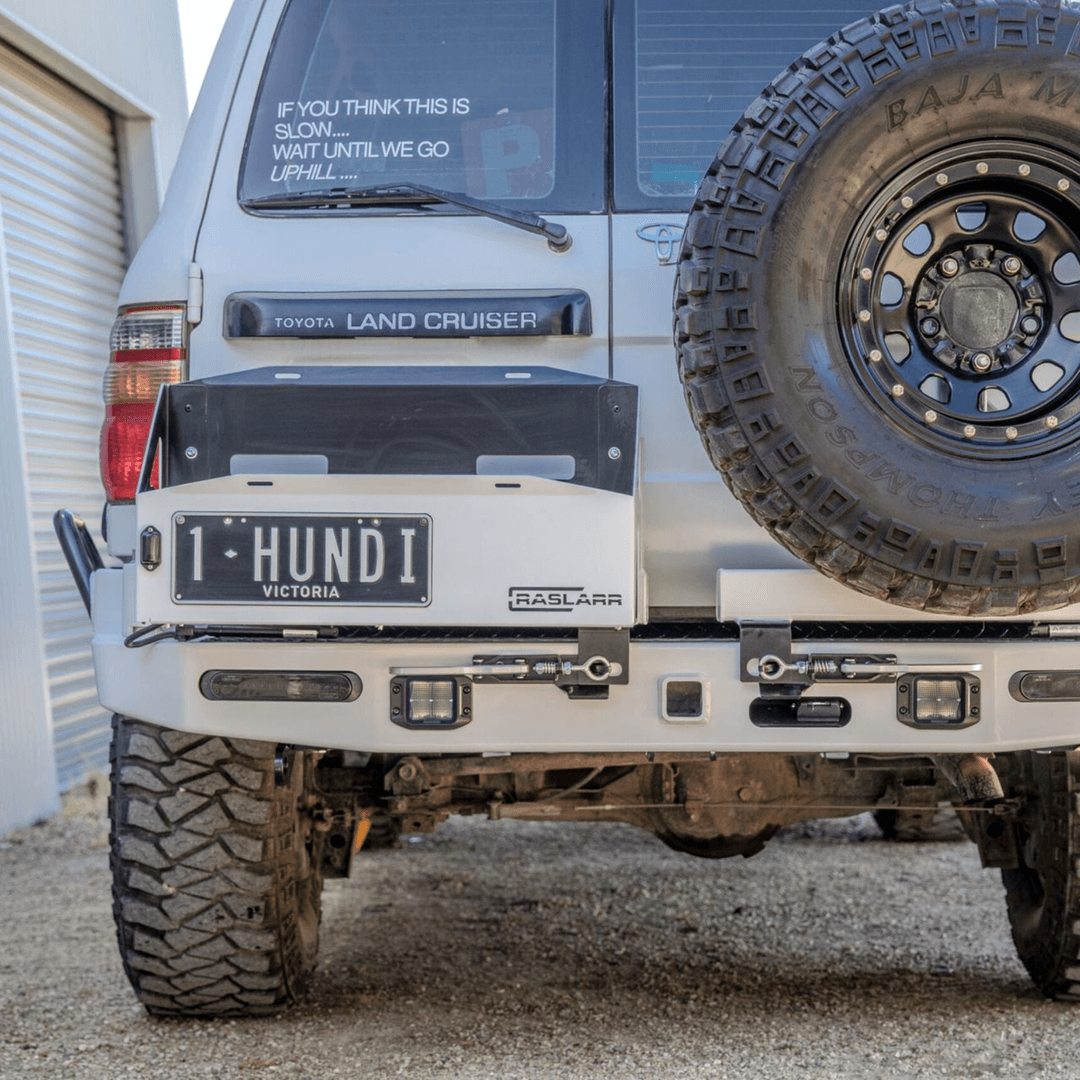

105 Series Raslarr Rear Bar V2 (Super High Clearance)

• Suits: All years
• Suits all variants; barn door & tailgate.

• Comes standard with incorporated tow bar for 3,500 tonne, with 350kg ball weight
• This is a new design for the 105 Series, which were designed to be super high clearance.

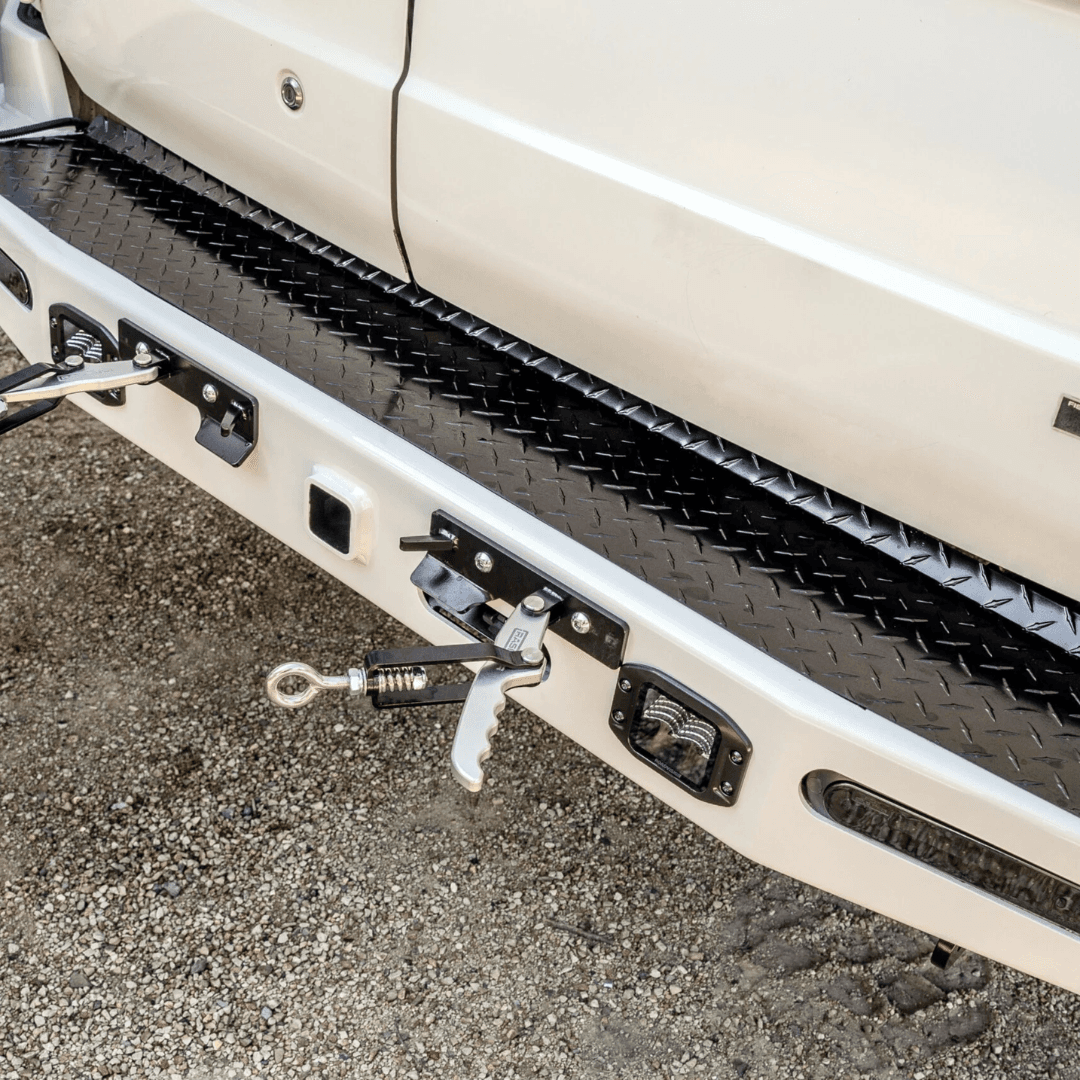

• Black checker top as standard.
• The main section of the rear bar is constructed from 6mm steel
• The wings are constructed from 4mm steel.
• 6mm braces back to the chassis, with provision for mounting mudflaps.

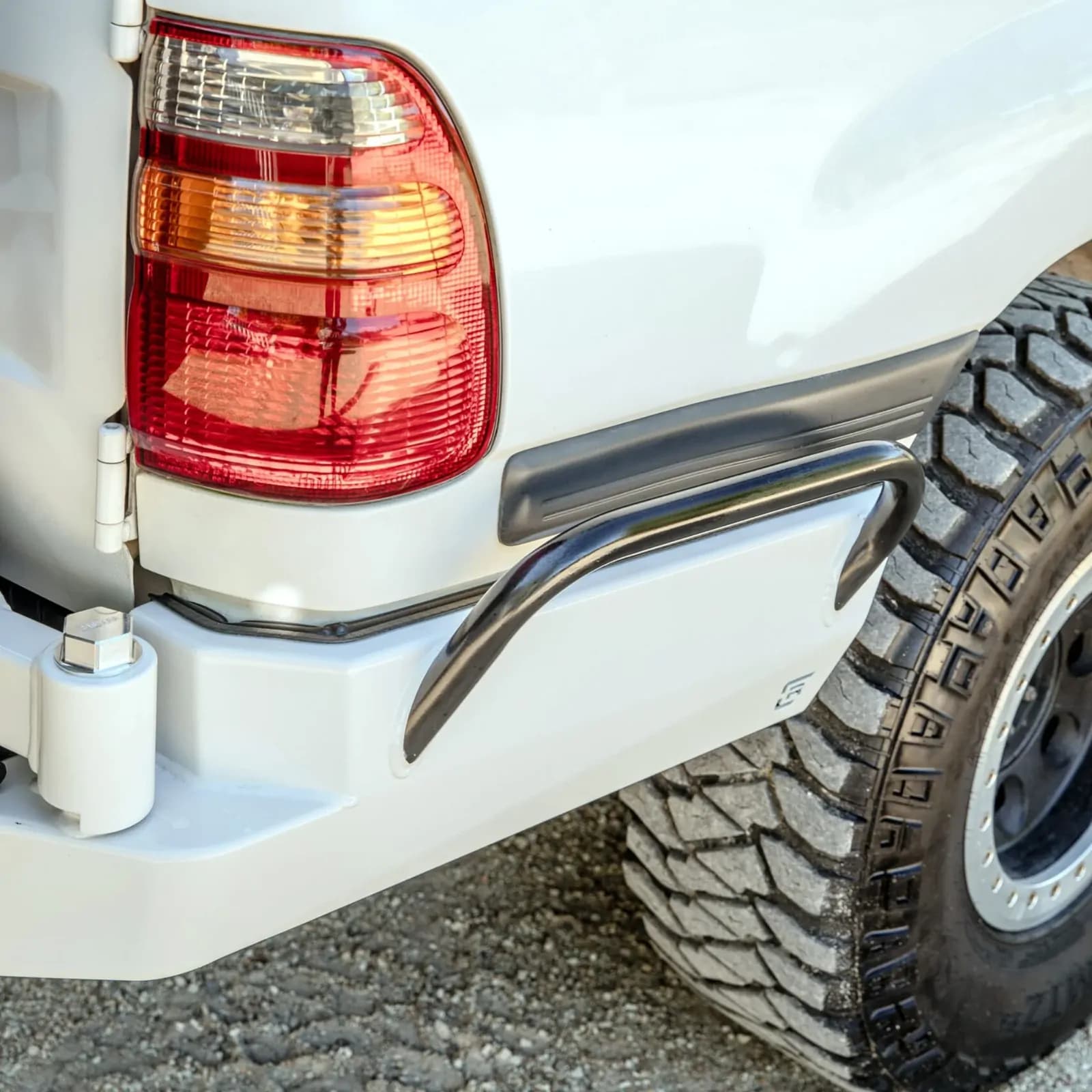

• Side hoops available for an optional extra.
• Comes standard with new square, flush-mount reverse lights
• Comes with new Road Vision stop/tail lights
• Comes standard with stubs.
  • Rear bars cannot be made without stubs.
  • When ordering a rear bar with no carriers, this will come standard with stub covers.
• The carrier hub also has an incorporated stopper to provide further reassurance when opening the carrier.

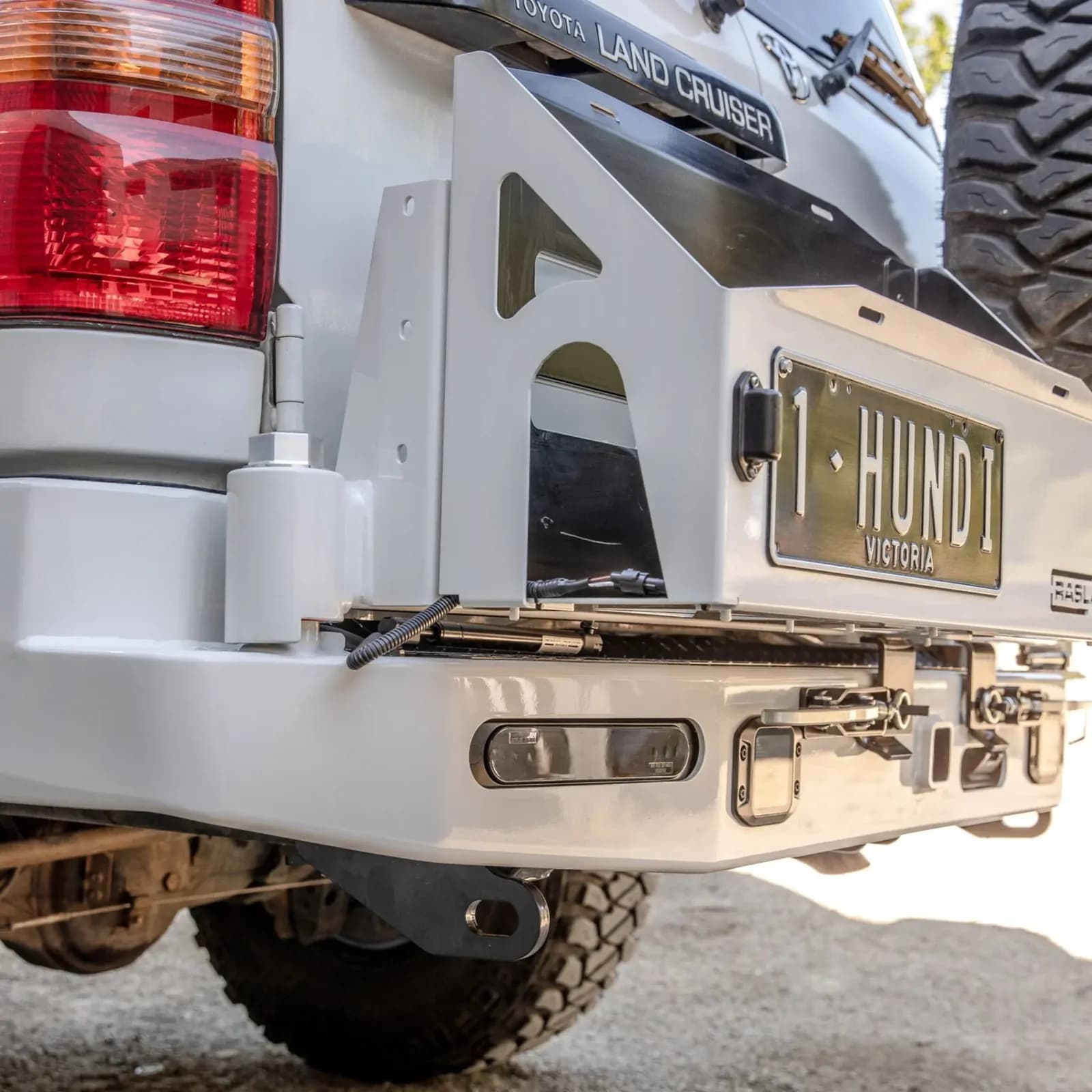

• Comes standard with our in-house, Australian made, fully adjustable stainless and billet combination latches, paired with CNC machined joints running a roller bearing to allow for smooth operation.
• The wheel carrier can fit up to dual 35” tyres
• Dual jerry can holders available
  • All jerry’s are aluminium and come standard in our modular style (bolt on to a base arm).
• Comes standard sandblasted, zinc primed & satin black powder coated
• Comes with all new hardware to mount your product.
• Colour coding options are available

Shipping and Professional Fitting
To arrange your shipping, please contact Legendex by phone at 07 3203 2333. Note that we can only ship this product to a commercial address. If a residential address is provided, we will contact you to request a commercial address. Alternatively, we can arrange delivery to the nearest depot based on your preference. Since the product ships from Melbourne, please be aware that store pick-ups in Brisbane will incur a freight fee.

Expert Fitting Service
Legendex offers professional fitting at our head office. Contact our team to discuss fitted pricing and ensure your product is installed correctly and to the highest standard.

Colour Coding

The Bar comes standard sandblasted, zinc primed and powder coated in a satin black.
We can have the bar colour matched to your vehicle, we will require an image of your VIN-PLATE to do so (We will contact you if you have selected colour coding).

Time Frame
Many of our products are made to order. Once an order is placed, production may commence, therefore orders cannot be cancelled or refunded.
Build times can vary depending on demand and product type. To get the most accurate and up-to-date build time or ETA, please contact our team on 07 3203 2333.

Why Buy from Legendex?
Legendex is your trusted partner in off-road excellence, providing high-quality products backed by reliable customer service. Upgrade your vehicle with confidence, knowing you’re supported by a team that understands performance, durability, and real-world application.

Call Legendex Now: 07 3203 2333
