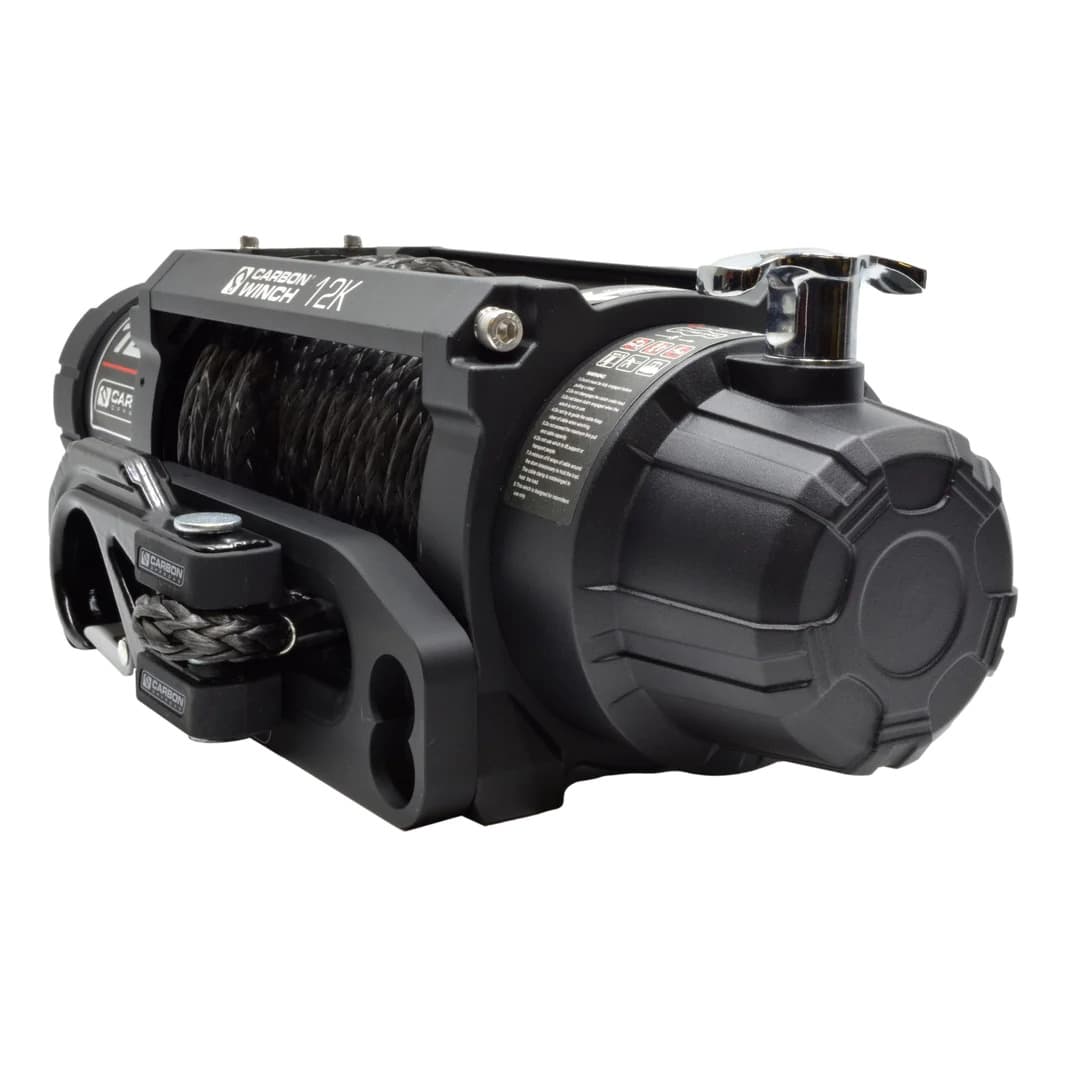

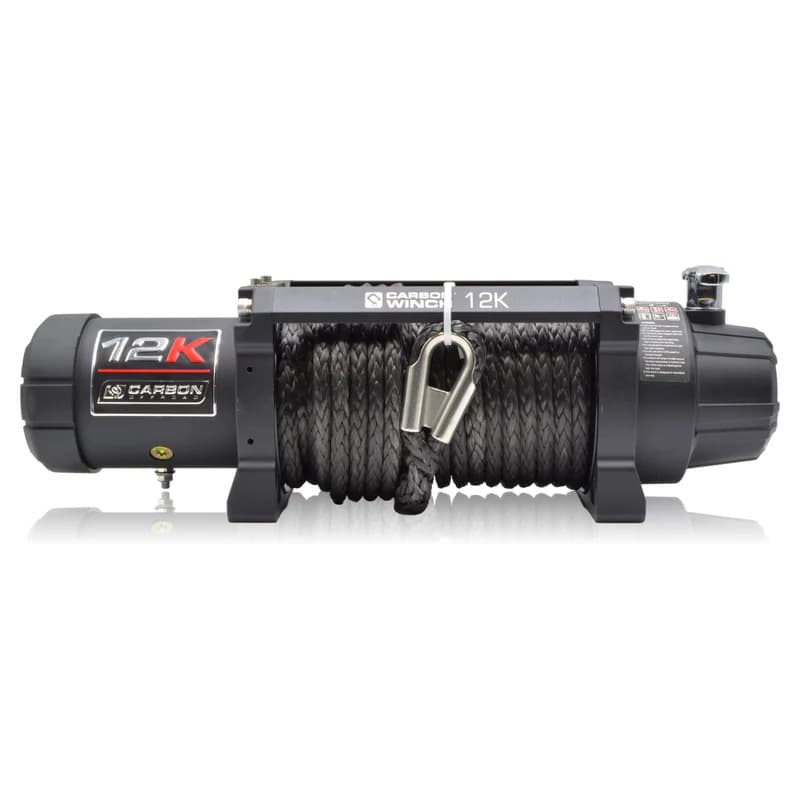

Carbon 12K 12000lb Electric Winch | Red

Carbon Winch 12k 12000lb Electric 12v 4x4 Winch

Version 3 2023 Model - Now Available IP68 Waterproof | 5 Year Australian Warranty | Lightest 4x4 Winch

Get A Winch You Can Trust - Get a Carbon Winch

Due to strong customer demand the Carbon Winch range has gone ALL BLACK. We include 2 x free rope protectors in every kit now, one in black and one in red, if you still want that splash of Red on the front of your rig, install the red rope protector to the end of your rope.

If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.

You will also notice that we have upgraded the stickers on the winch, this sleek new look will compliment any rig out there!

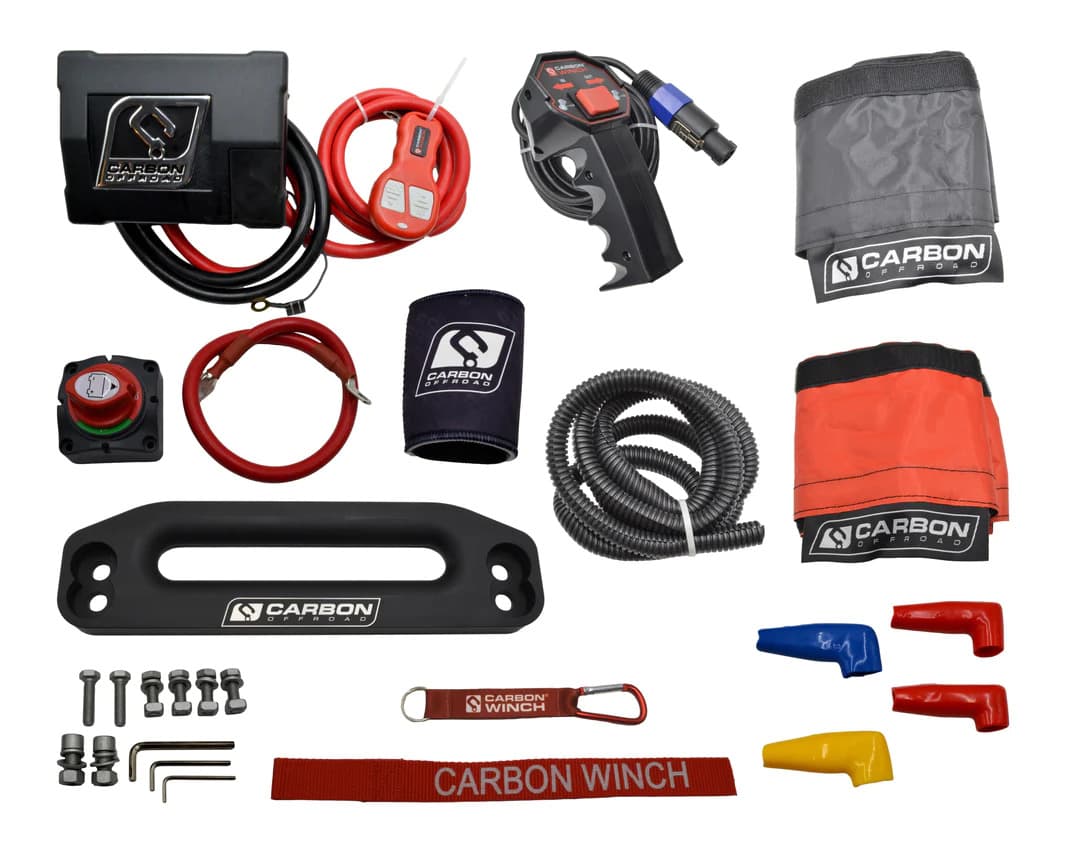

What do you get in the kit?

• Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
• 24m x 10mm high strength synthetic winch rope
• 1 x Carbon winch hook
• 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
• 1 x long black battery cable
• 1 x Isolator switch
• 1 x battery to isolator switch cable
• 1 x Wireless remote
• 1 x Wired remote
• 1 x Multifit CNC Alloy fairlead (offset and standard position)
• 4 x Mounting bolts
• 3 x Allen keys
• 2 x additional longer mounting bolts (fairlead mounting)
• 2 x additional nuts for remote mounting solenoid box
• 1 x Hook hand saver strap
• 1 x FREE 1.5 M Branded Rope Protector Black
• 1 x FREE 1.5 M Branded Rope Protector Red
• 1 x Carbon lanyard
• 1 x Carbon stubby cooler
• Installation manual Included, comprehensive, revised version for V2
• Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
• Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
• Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

The all new feature packed Ver.3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.

The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote(both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection - 6 - Can withstand dust and dirt. 8 - Can be submerged under freshwater for 30 minutes up to 1.5mtrs depth, but not during operation.

You want the reliability of a winch that will perform when you need it to, time after time.

With a reliable 6.2HP motor and a tough 3 stage planetary gearbox the Carbon Winch will get you back on your journey and get you to your destination. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.

If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.

Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
