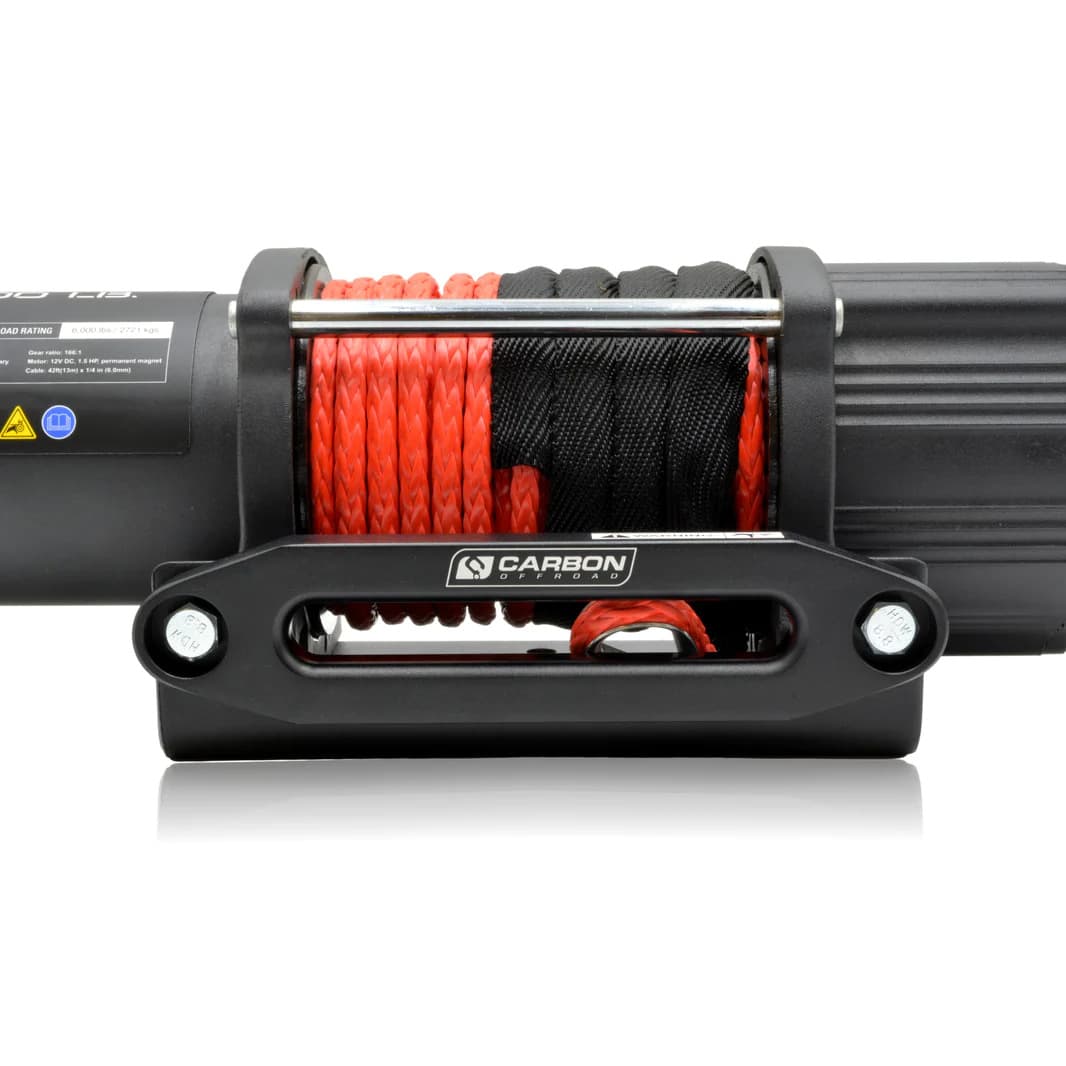

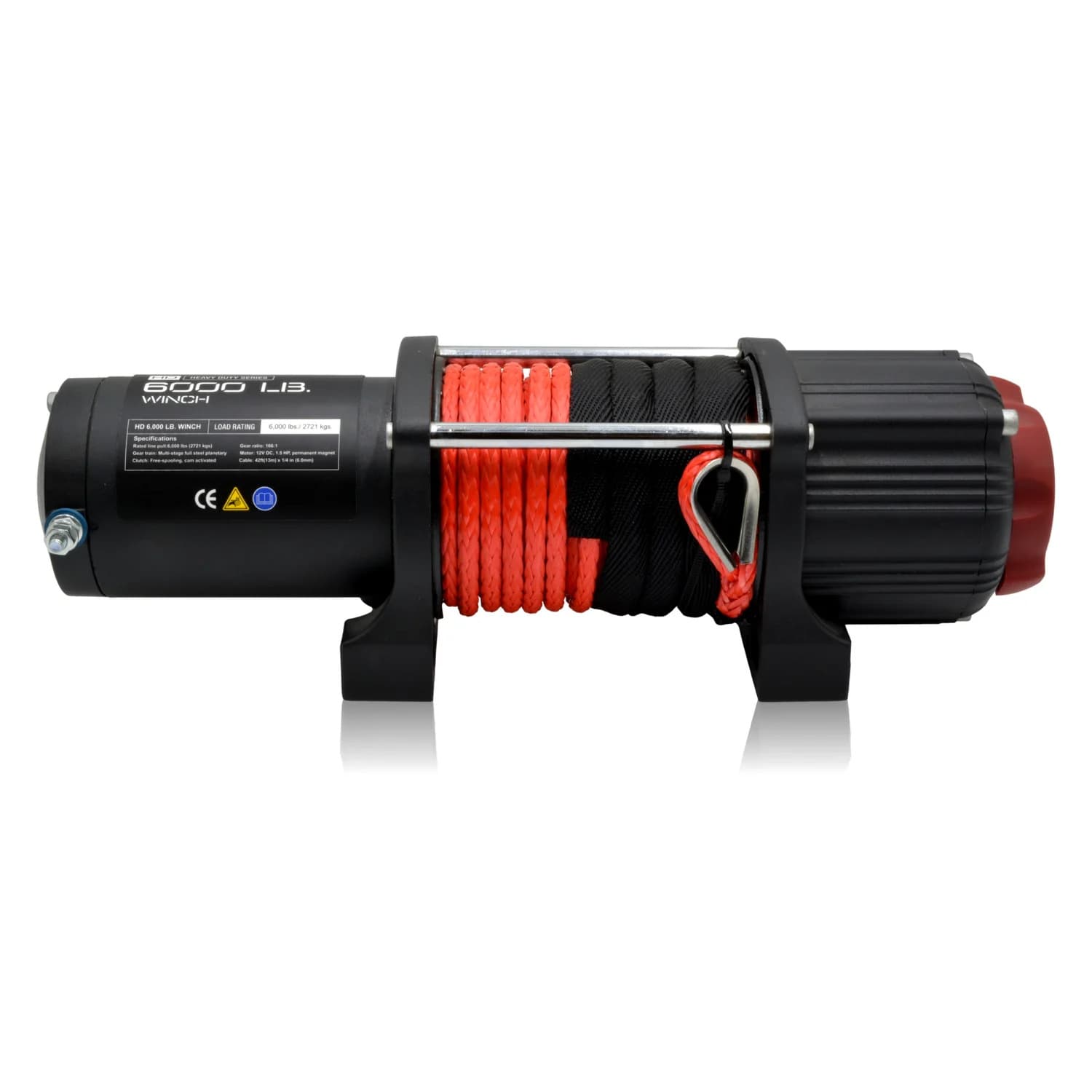

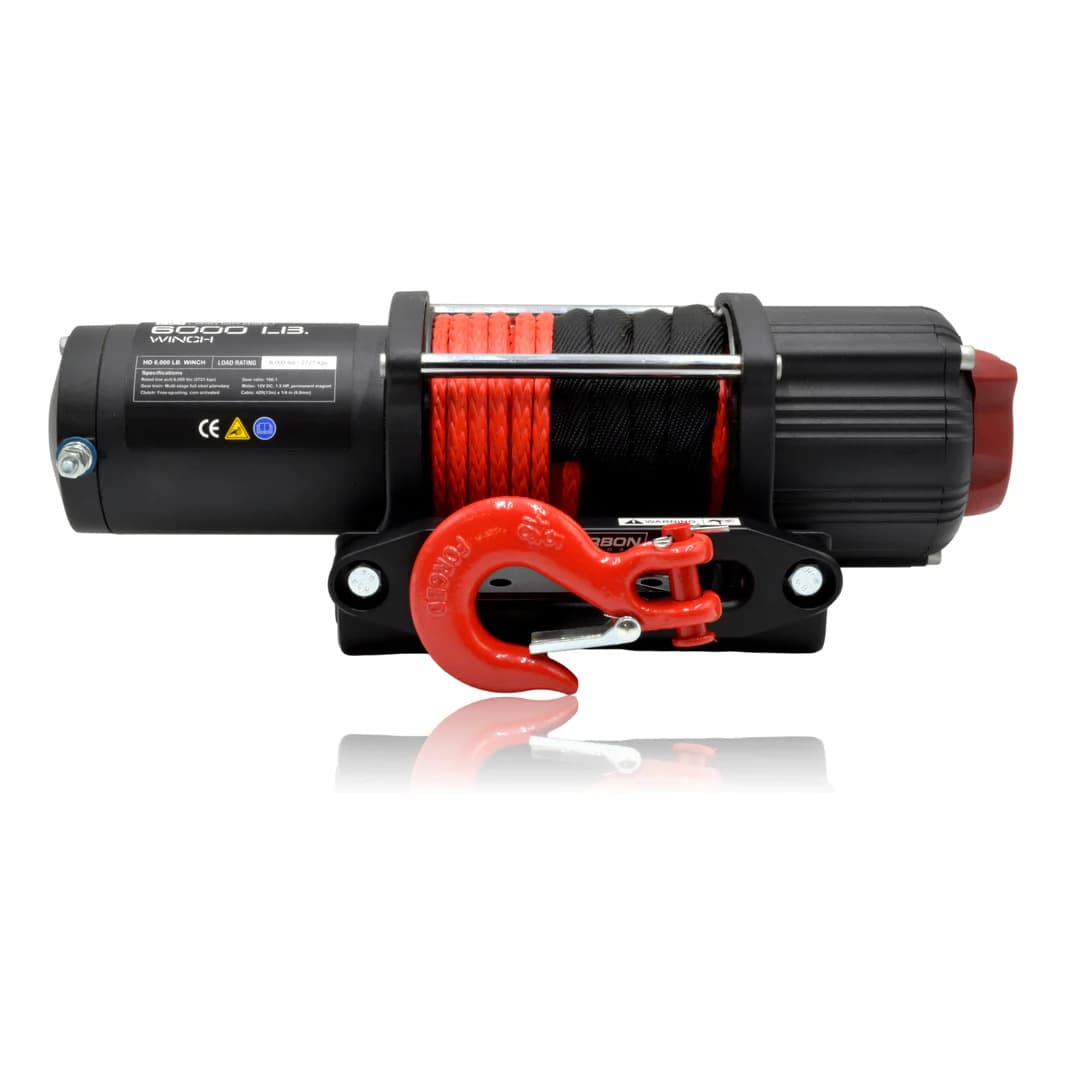

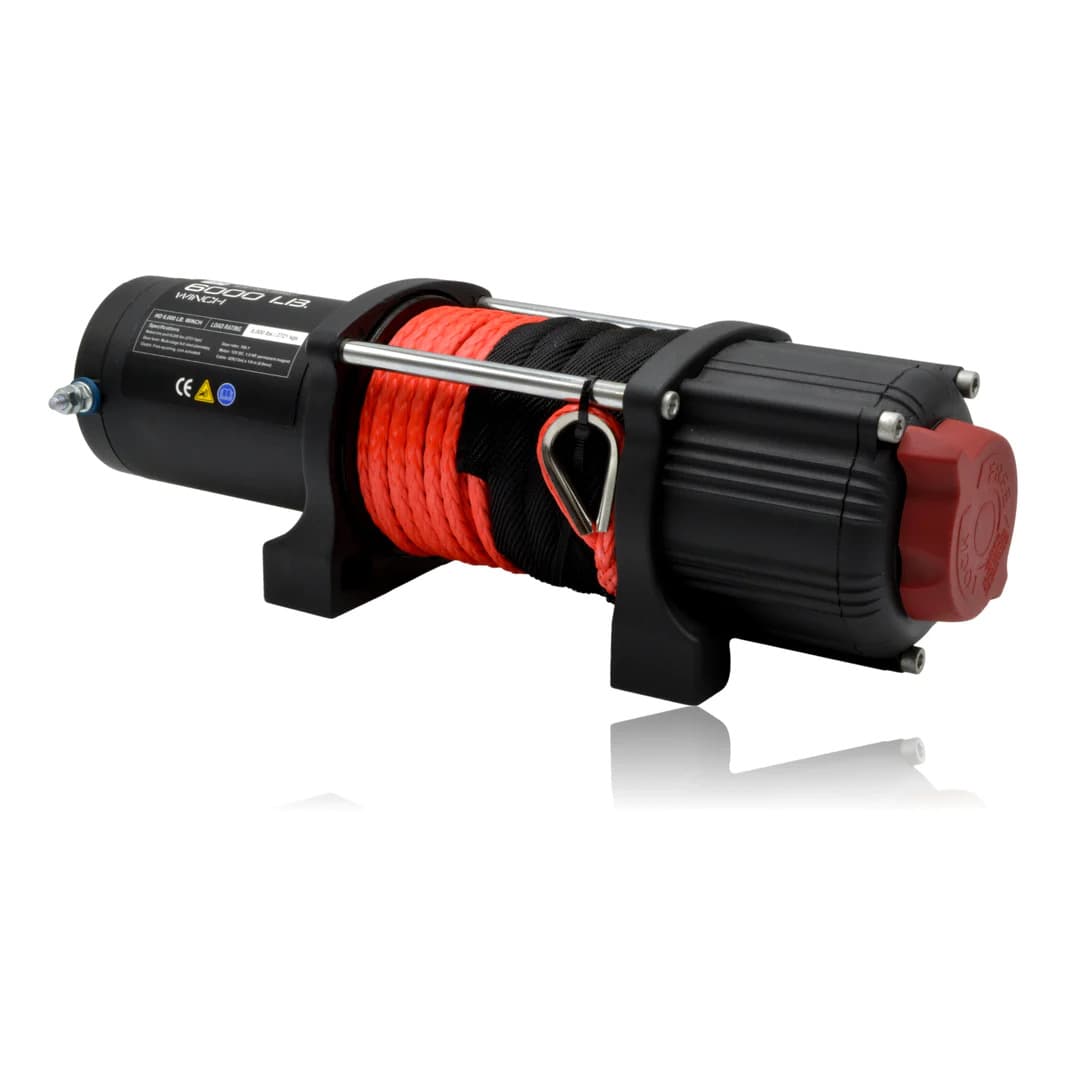

Carbon Offroad Tank 6000lb Winch Kit 12V

$599.00

Includes $54.45 GST

SKU CW-TK6

1
Get a fitted quote

Type your postcode for the delivery price.

The workshop confirms stock and freight before anything ships.

Not sure it fits your rig? Ask the workshop about this part.

Fits

  • Suzuki Jimny2018 on

01

Fitment

MakeModelYears
SuzukiJimny2018 on

02

Description

The Carbon Offroad Tank 6000 lb Capacity winch for small 4wds, caravans, trailers, boats.

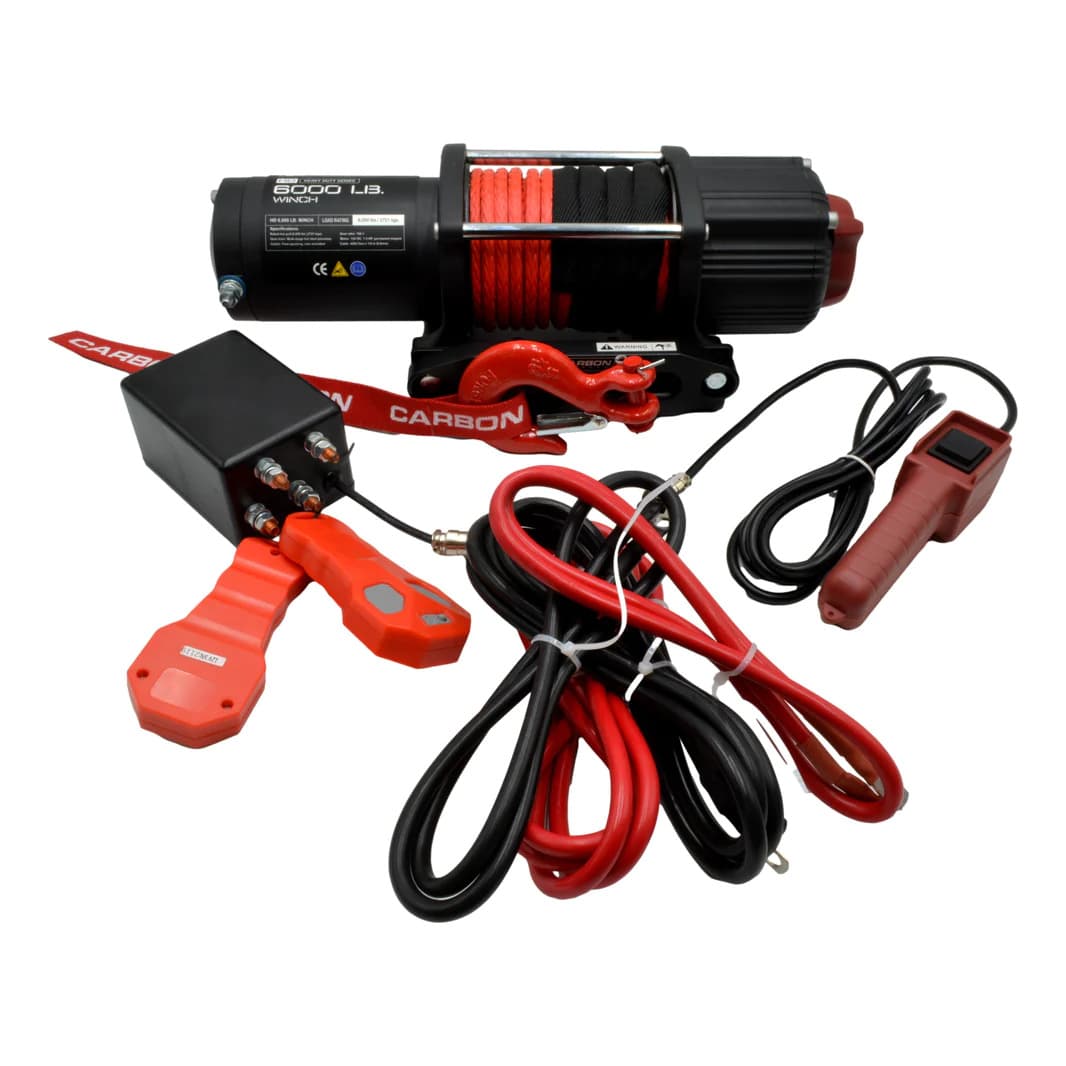

A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an exisitng pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.

Features and Benefits

  • Sealed motor and geartrain allows for flawless operations in extreme conditions
  • Permanent magnet motor provides heavy duty torque for increased pulling power

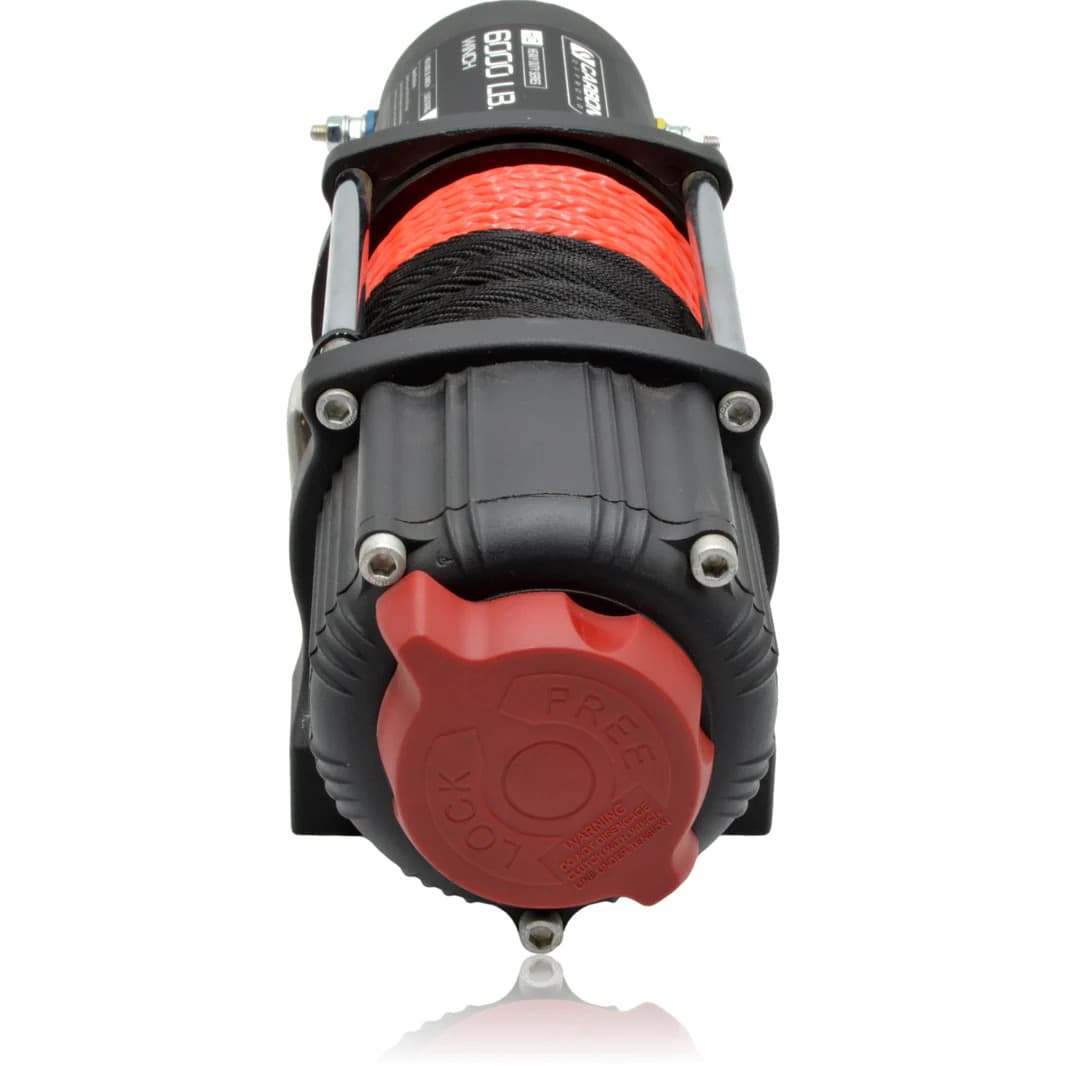

  • Cam action disengages gears for near silent free-spooling
  • Mechanical and dynamic brake offers increased control and prevents rollback

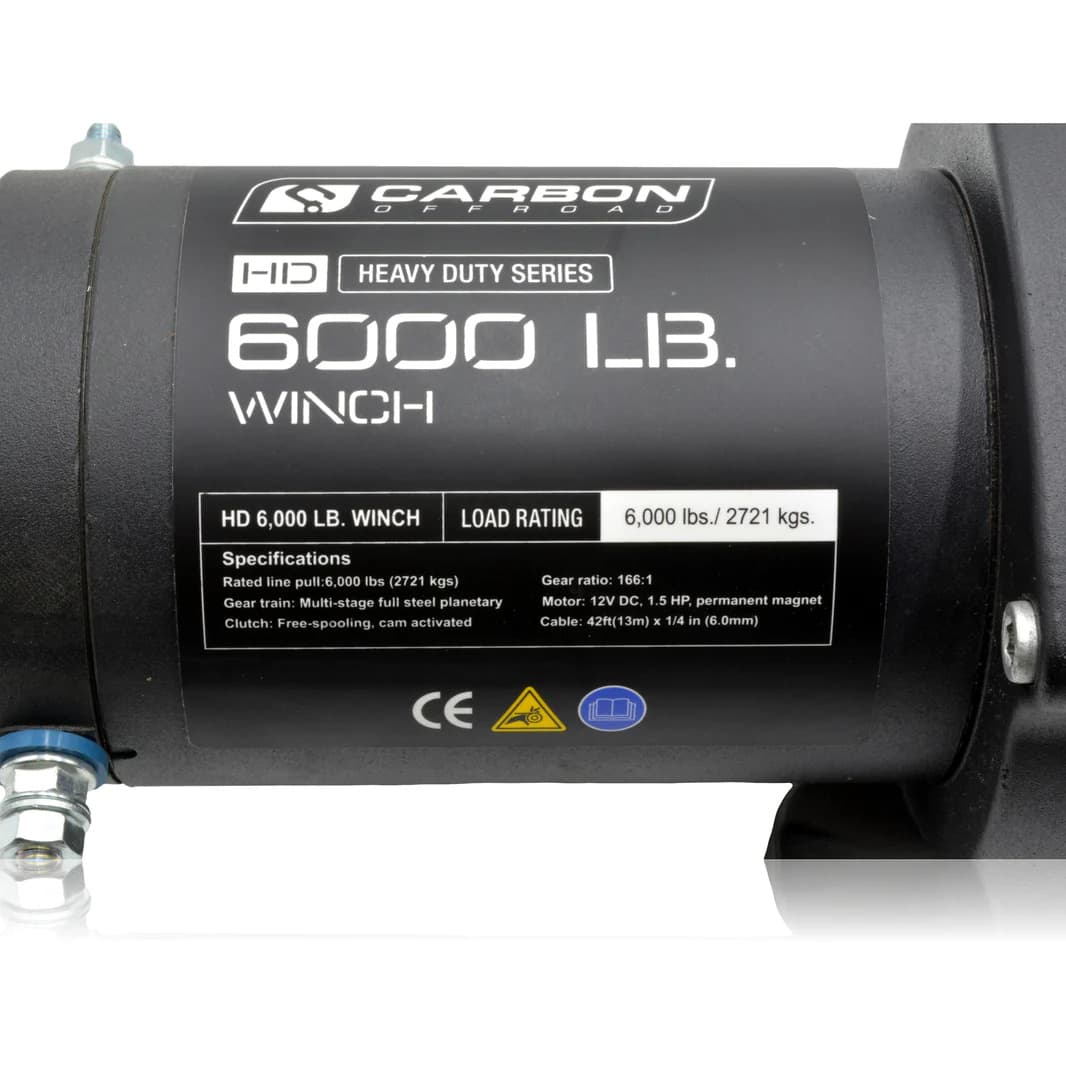

Specification for CW-TK6

  • Part number: CW-TK6
  • Rated line pull: 6,000 lbs, (2721kg) single-line
  • Motor: 12V DC 1.5HP motor
  • Geartrain: 3 Stage Planetary
  • Gear Ratio: 166:1
  • Clutch: Freespooling, Cam activated
  • Synthetic Rope: 42 ft (13m) x 1/4 in (6.0mm)
  • Fairlead: Aluminium Hawse
  • IP Rating: IP66 - Winch and Controls (Except remote switch)
  • Winch Dimensions ( L x W x H ): 13.8 x 4.5 x 4.7in (350.5 x 115 x 120mm)
  • Mounting Bolt Pattern: 3.0 x 6.59in (76mm x 167mm)
  • Packing Dimensions( L x W x H ): 19.7 x 12.1 x 7.28in (500 x 307 x 185mm)
  • Shipping Weight: 12.2kg

03

Specifications

BrandCarbon Offroad
SKUCW-TK6
Weight15.0 kg
CategoriesRecovery
