Legendex, Premium Off-Road Performance
New

GTurbo

Nissan Patrol ZD‑G320 Titanium

In stock · dispatched in 1-3 days
$3,980.00

Includes $361.82 GST

SKU T T ZD30 S4

1
Get a fitted quote

Type your postcode for the delivery price.

Not sure it fits your rig? Ask the workshop about this part.

Fits

  • Nissan Patrol GU2000 to 2016

01

Fitment

MakeModelYears
NissanPatrol GU2000 to 2016

02

Description

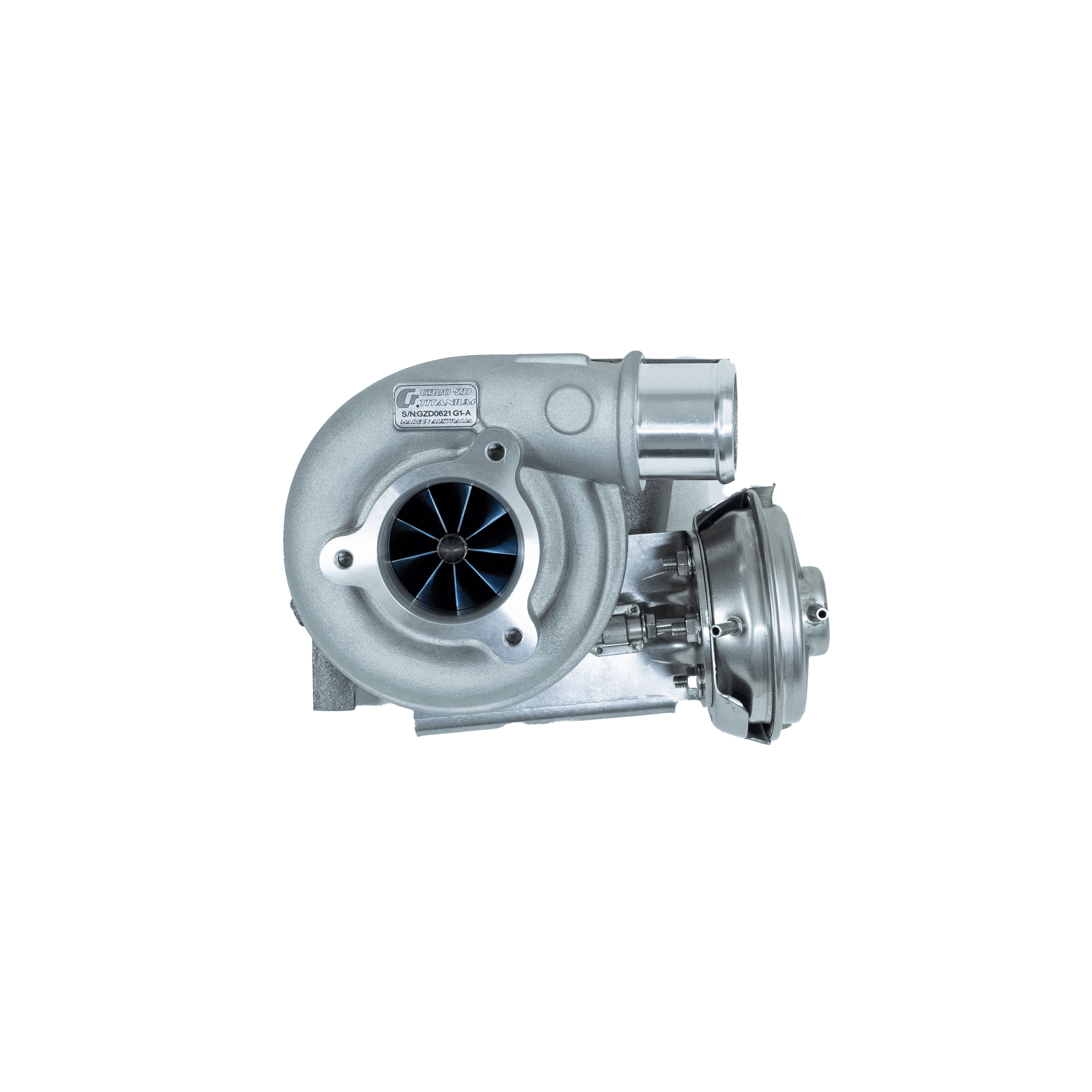

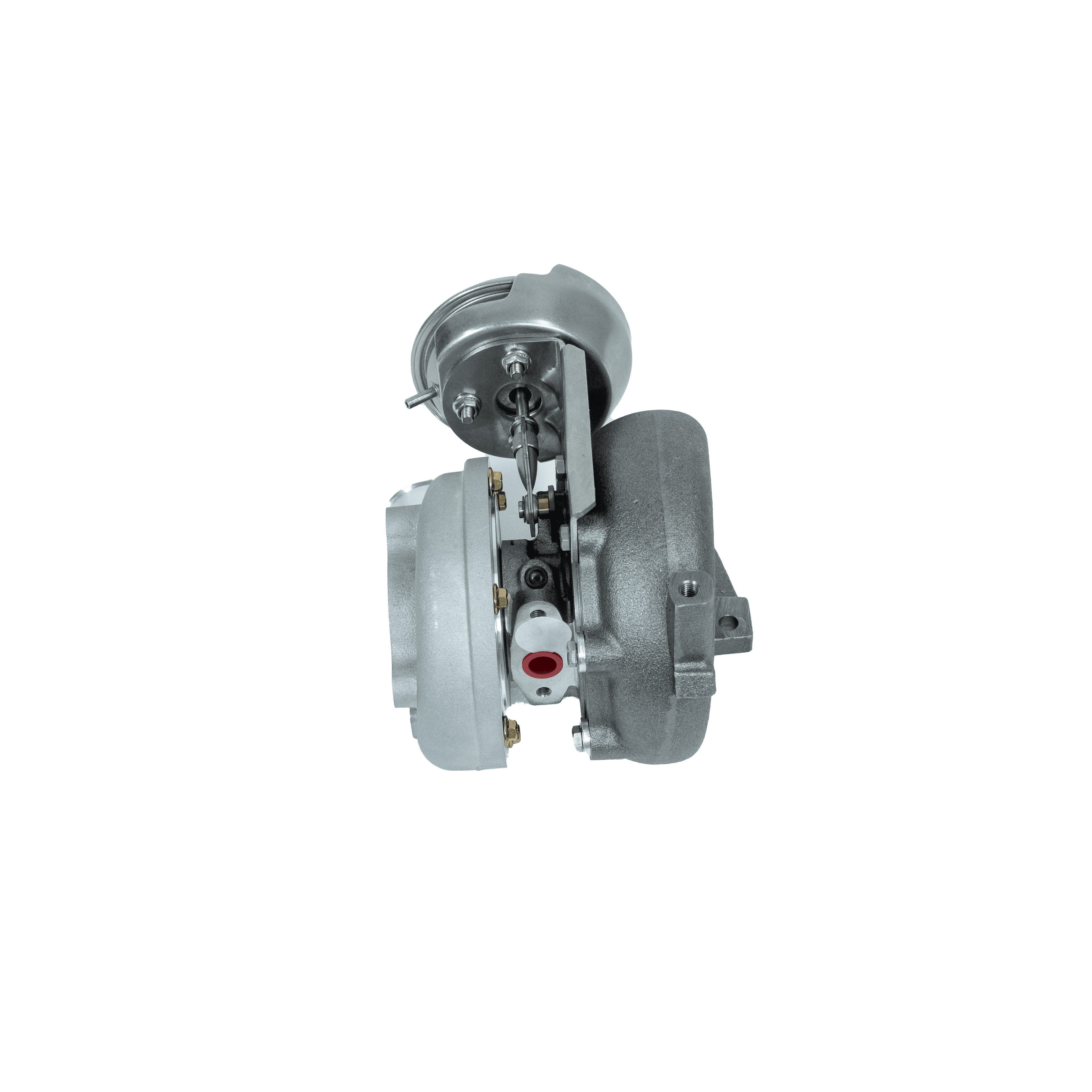

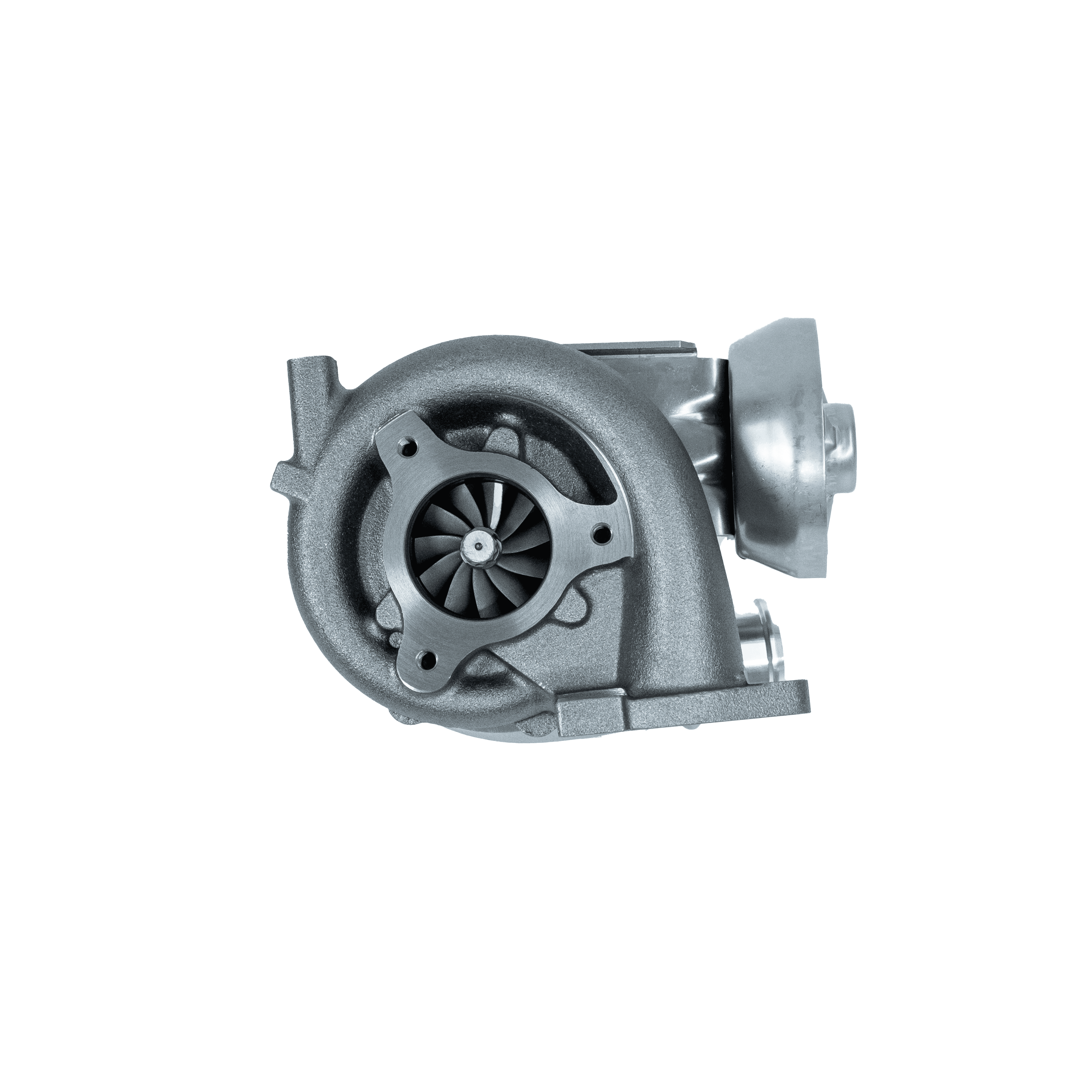

Nissan Patrol ZD-G320 Titanium

GTurbo ZD-G320Ti Titanium

Introducing the GTurbo ZD-G320Ti Titanium: the ultimate turbocharger upgrade for ZD30 CRD Patrols, engineered for extreme strength, response, and long-term durability. Built for serious performance under load, the ZD-G320Ti is the perfect solution for high-power touring setups, off-road builds, and heavy towing applications.


Key Features:

Titanium Compressor Wheel
At the heart of the ZD-G320Ti is a billet titanium compressor wheel: stronger, lighter, and more thermally stable than aluminium. This aerospace-grade material ensures rapid spool-up, reduced inertia, and exceptional resilience under extreme heat and boost.

Rapid Boost Delivery
With 20psi of boost available from just 1550rpm and 36psi by 2000rpm, the ZD-G320Ti delivers an immediate torque hit when you need it most. Boost is sustained up to 4000rpm, giving strong acceleration and top-end power with zero drop-off.

Heavy-Duty Internals
Equipped with a low-inertia turbine, reinforced bearing housing, and upgraded core components, the ZD-G320Ti is built to handle high boost pressures (up to 42psi) and extreme exhaust gas temperatures reliably.


Performance Expectations:

The ZD-G320Ti is designed to operate efficiently between 16–42psi. With the right setup, 20psi is typically achieved by 1550rpm, with 36psi by 2000rpm and sustained 35psi to 4000rpm. (Performance data based on turbo intake air temp below 35°C and pressure above 98kPa.)

Typical ZD30 CRD Performance:

  • Factory Stock:
    280–300Nm wheel torque
    89–96rwkW

  • With ZD-G320Ti + ECU Remap:
    500–550Nm wheel torque
    140–155rwkW

  • With Full Supporting Mods (High Flow Injectors, intercooler, exhaust, airbox):
    800+Nm wheel torque
    240+rwkW

Manual vehicles require an upgraded clutch to handle torque levels. Automatic vehicles benefit from a shift kit or valve body upgrade to ensure clean gear changes and transmission longevity.


Supporting Modifications:

To maximise performance and reliability, we recommend the following supporting modifications:

  • GTurbo ECU Remap

  • PDI Front-Mount Intercooler

  • 3” Turbo-Back Exhaust System

  • GTurbo +100% High-Flow Injectors

  • High-Flow Airbox and Intake Piping

  • Upgraded Clutch (Manual) or Shift Kit / Valve Body (Auto)


GTurbo's warranty:

All GTurbo-manufactured components are backed by a 2-Year Warranty under normal use and conditions, providing peace of mind and confidence in long-term durability.

03

GTurbo figures

GTurbo figures

GTurbo's published figures for this part.

Turbo sizeG320
Operating range16 to 42 psi

04

Specifications

BrandGTurbo
SKUT T ZD30 S4
EngineZD30
Weight8.0 kg
CategoriesTurbos
