Nissan TD42 TD‑G200 Titan

Nissan TD42 TD-G200 Titan

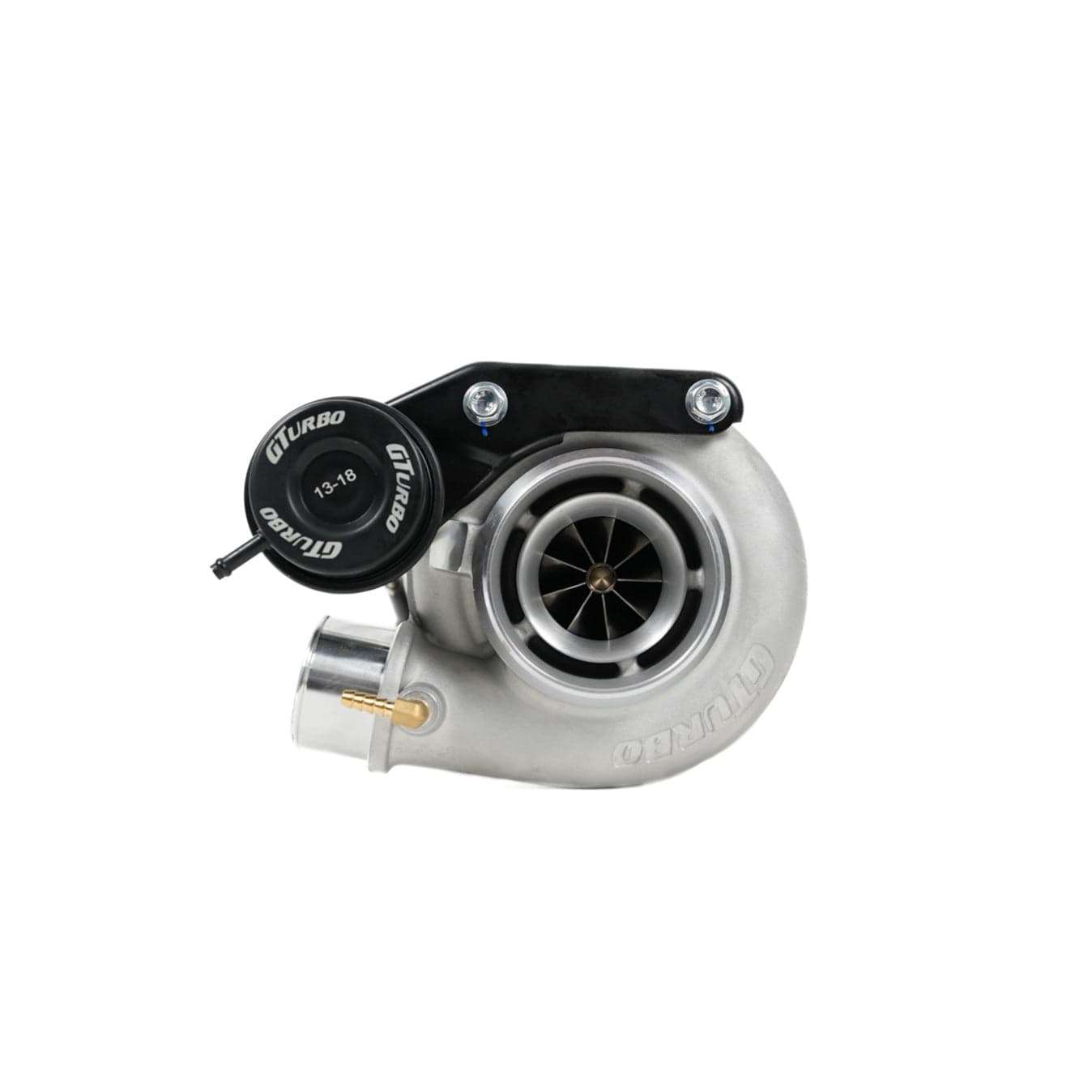

Introducing the GTurbo HD/TD-G200 Titan, the latest turbocharger engineered for exceptional low-boost performance in the TD42, 12HT, 1HZ and 1HDT engines. Designed for unmatched boost response and increased flow capacity, the TD-G200 Titan delivers exceptional power and drivability across the entire RPM range.

Unmatched Boost Response: The TD-G200 Titan is designed for rapid spool, achieving 20psi of boost by 1400RPM with complementary modifications and tuning. This delivers immediate throttle response and increased torque, making it ideal for low-boost applications.

Boost Range: Operating efficiently from 9-25psi, the TD-G200 Titan is capable of 25psi by 3000RPM and 20psi up to 4000RPM, offering exceptional top-end power potential.

Enhanced Flow and Efficiency: While the TD-G333 Titan offers greater peak flow, the TD-G200 Titan delivers superior response, making it an excellent choice for low-boost applications.

Actuator relief pressure: 9-12psi (can be increased further with manual boost controller)

This dyno sheet features a HZJ79 equipped with a HD-G200 Titan(10.3psi), a factory non-compensated injector pump, a front-mount intercooler, and a 3” exhaust, running on 35” Toyo Open Country tyres.
