Legendex, Premium Off-Road Performance
New

GTurbo

Toyota LandCruiser VD‑G400 Titanium

In stock · dispatched in 1-3 days
$4,980.00

Includes $452.73 GST

SKU T T 1VD-FTV S4.5

1
Get a fitted quote

Type your postcode for the delivery price.

Not sure it fits your rig? Ask the workshop about this part.

Fits

  • Toyota LandCruiser 200 Series2007 to 2021
  • Toyota LandCruiser 76 Series wagon2007 on
  • Toyota LandCruiser 78 Series Troop Carrier2007 on
  • Toyota LandCruiser 79 Series ute2007 on

01

Fitment

MakeModelYears
ToyotaLandCruiser 200 Series2007 to 2021
ToyotaLandCruiser 76 Series wagon2007 on
ToyotaLandCruiser 78 Series Troop Carrier2007 on
ToyotaLandCruiser 79 Series ute2007 on

02

Description

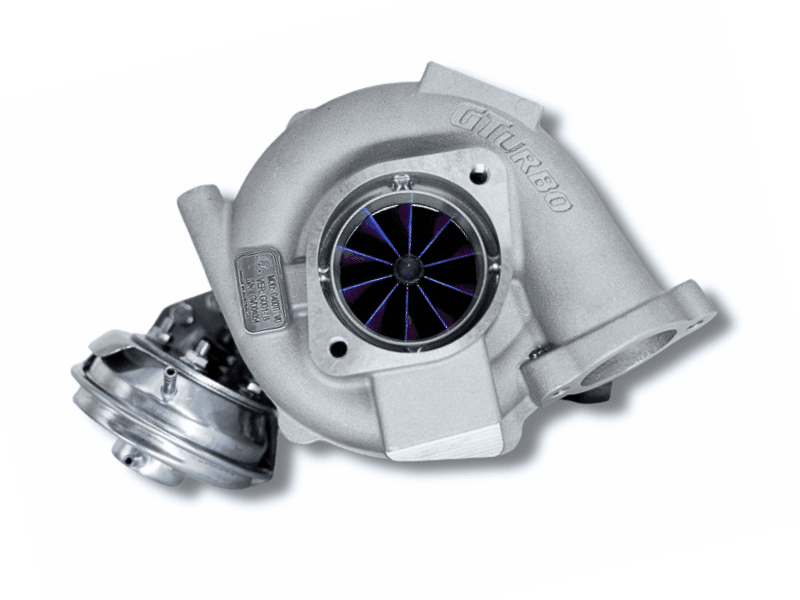

Toyota Landcruiser VD-G400 Titanium

VD-G400Ti Titanium: Maximum Flow, Maximum Strength for Big-Boost VDJ Builds

Introducing the GTurbo VD-G400Ti, the highest-flowing turbocharger in our VDJ single-turbo lineup, built for serious power, high-load towing, and performance that keeps pulling all the way to redline. Designed for well-built 1VD-FTV setups with upgraded fueling, cooling, and tuning, the VD-G400Ti delivers brutal top-end performance without compromising reliability or response.

With a titanium billet compressor, larger turbine, and reinforced internals, this turbo is engineered to thrive under extreme boost, heat, and load. Whether you're chasing peak dyno numbers, pulling heavy trailers across long distances, or powering through deep sand, the VD-G400Ti has the strength and flow to do it all.

Key Features:

  • Titanium Billet Compressor Wheel: 59% larger than factory and made from aerospace-grade titanium for extreme heat resistance, ultra-low inertia, and superior reliability at high RPM and pressure.

  • Next-Gen Oversized Turbine: 63% larger than stock, delivering outstanding flow capacity without sacrificing low-end boost response.

  • Heavy-Duty Internals: 60% stronger main shaft, upgraded thrust bearing, and high-flow Next-Gen VNT system for reliable boost under sustained load.

  • Reinforced Construction: One-piece bearing housing and marine-grade stainless vacuum actuator for maximum durability in tough off-road, towing, and coastal environments.

Performance Expectations:

The VD-G400Ti is designed to handle high boost and big airflow across the full RPM range. With the right supporting mods and tune, you can expect:

  • Factory Output (1VD-FTV, Single Turbo): ~380Nm at the wheels / ~100–120rwkW

  • With VD-G400Ti + Custom ECU Tune: ~800–900Nm / 200–230rwkW

  • Boost Delivery:
    • ~30psi by 1550rpm (with supporting mods & tuning)
    • Up to 40psi by 2000rpm with efficient air intake and low charge temps

  • With Full Supporting Mods: Up to 330rwkW and 1100+Nm at the wheels
    (Large intercooler, 3” exhaust, GTurbo Power Pipe, injectors, and NPC1600Nm clutch required)

Note: Peak performance is based on setups using a turbo-back exhaust. Output may be slightly reduced if the factory DPF is retained. While compatible with the factory ECU tune, a custom remap is highly recommended to unlock full potential and ensure safe operation.

Supporting Modifications:

To maximise performance and reliability with the VD-G400Ti, we recommend:

  • GTurbo Intercooler Fan Kit or PDI Front-Mount Intercooler

  • Turbo-Back 3” Exhaust System

  • GTurbo Power Pipe (turbo intake)

  • High-Flow Airbox & Induction Plumbing

  • GTurbo High-Flow Injectors

  • NPC1600Nm Heavy-Duty Clutch Upgrade

Includes 2-Year Warranty when installed by a GTurbo-authorised agent

Toyota 1VD-FTVDesign BoostOperating RangeLow Torque (Nm)High Torque (Nm)Low Power (kW)High Power (kW)
Stock 115kW/380nm
Original127-18n/a430n/a110
VD-G3333312-33800900180260
VD-G3803612-368501100210290
VD-G400Ti4016-449001300235300+

03

GTurbo figures

GTurbo figures

GTurbo's published figures for this part.

Up to 330 kW and 1100 Nm at the wheels with the rest of the build on the 4WD.

Turbo sizeG400
Power at the wheelsup to 330 kW and 1100 Nm at the wheels

From GTurbo

  • With Full Supporting Mods: Up to 330rwkW and 1100+Nm at the wheels

GTurbo specifications

Toyota 1VD-FTVDesign BoostOperating RangeLow Torque (Nm)High Torque (Nm)Low Power (kW)High Power (kW)
Stock 115kW/380nm
Original127-18n/a430n/a110
VD-G3333312-33800900180260
VD-G3803612-368501100210290
VD-G400Ti4016-449001300235300+

04

Specifications

BrandGTurbo
SKUT T 1VD-FTV S4.5
Engine1VD-FTV
Weight10.0 kg
CategoriesTurbos
