Legendex, Premium Off-Road Performance
New

GTurbo

Toyota Hilux KD‑G250 Titan

In stock · dispatched in 1-3 days
$2,990.00

Includes $271.82 GST

SKU T T 1KD-FTV S2

1
Get a fitted quote

Type your postcode for the delivery price.

Not sure it fits your rig? Ask the workshop about this part.

Fits

  • Toyota Fortuner2005 to 2015
  • Toyota Hilux N702005 to 2015
  • Toyota Prado 120 Series2003 to 2009
  • Toyota Prado 150 Series2009 to 2015

01

Fitment

MakeModelYears
ToyotaFortuner2005 to 2015
ToyotaHilux N702005 to 2015
ToyotaPrado 120 Series2003 to 2009
ToyotaPrado 150 Series2009 to 2015

02

Description

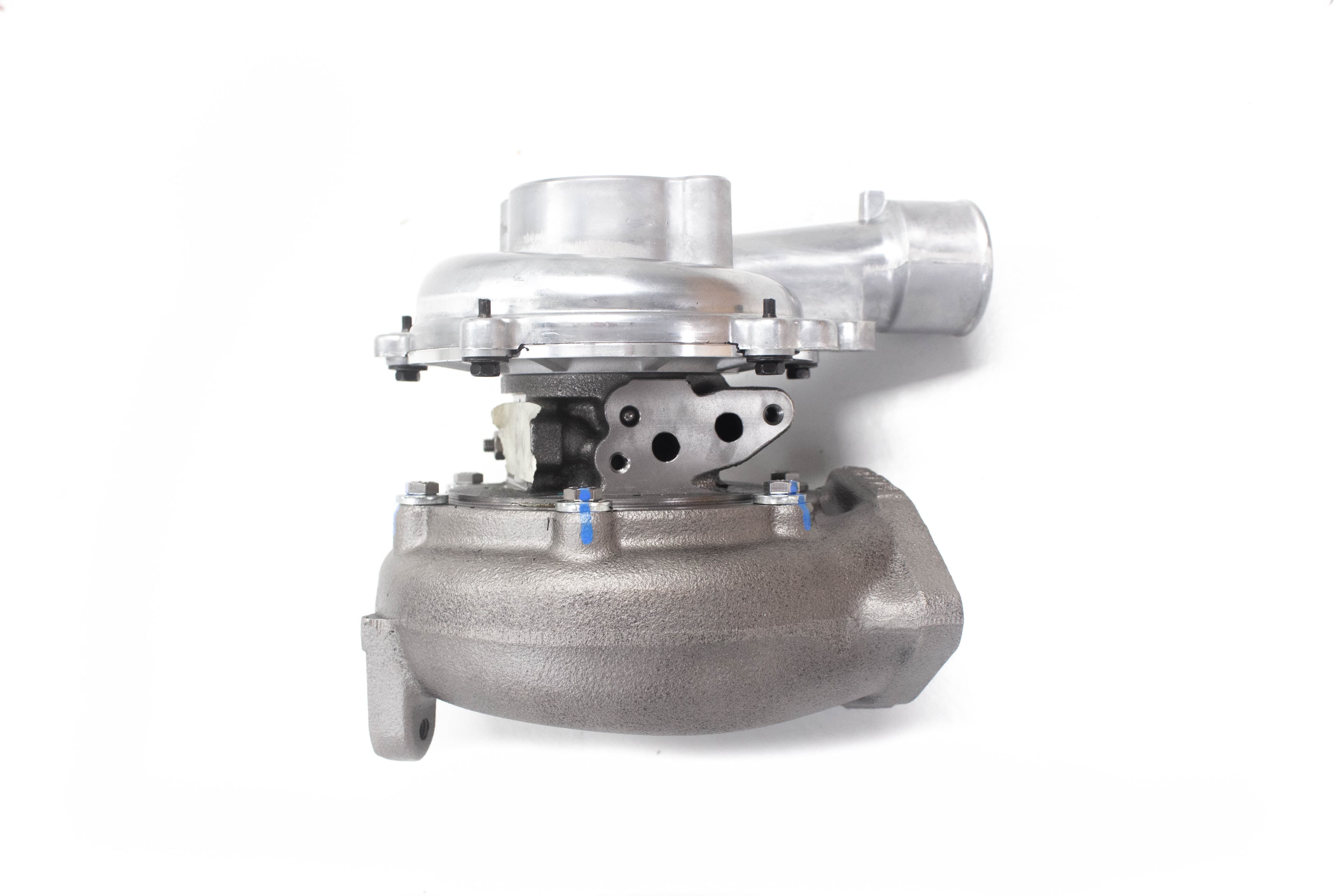

Toyota Hilux KD-G250 Titan

Introducing the GTurbo KD-G250 Titan, the ultimate upgrade for your vehicle's performance needs. Building on the legacy of the KD-G250 Green, the Titan version incorporates cutting-edge advancements to deliver unmatched power, responsiveness, and durability.

Key Features:

  1. Advanced Aerodynamics: Optimised for superior airflow and enhanced efficiency.
  2. Lower Inertia: Provides rapid spool times and instant throttle response.
  3. Super Alloy Base: Ensures exceptional strength and durability.
  4. Aerospace-Grade Coating: Reduces friction, resists high temperatures and corrosion, ensuring long-lasting performance.

Performance Expectations

The KD-G250 Titan turbocharger targets great low-down response and efficient performance/boost throughout the rev range. It features a high-response turbine wheel, larger and more efficient compressor wheel, upgraded thrust bearings, a 30% stronger main shaft, and a higher flow VNT system. Designed for a boost of 28psi, it operates efficiently from 10-30psi, with optimal tuning at 28psi.

With an upgraded intercooler and ECU tune, expect power increases to around 140-150rwkW and torque to 500nm. Installations with a larger intercooler, 3” exhaust, and upgraded injectors can yield up to 180rwkW and over 650nm at the wheels. An upgraded clutch is mandatory for manual transmissions.

Packages

  • KD-G250 Titan Turbo: $2990

Common supporting modifications include an exhaust upgrade, front mount intercooler, upgraded air box, and high-flow injectors. Contact us to discuss the best upgrade options for your vehicle.

  • 1 Year Warranty on all products.
  • Additional costs apply for tuning and installation.
Toyota 1KDDesign BoostOperating RangeLow Torque (Nm)High Torque (Nm)Low Power (kW)High Power (kW)
Stock 123kW/343nm
Original9-127-16n/a343/410n/a92/98
G250287-30580650140185
G300347-37700800190230

03

GTurbo figures

GTurbo figures

GTurbo's published figures for this part.

Up to 180 kW and 650 Nm at the wheels with the rest of the build on the 4WD.

Turbo sizeG250
Design boost28 psi
Operating range10 to 30 psi
Power at the wheelsup to 180 kW and 650 Nm at the wheels

From GTurbo

  • With an upgraded intercooler and ECU tune, expect power increases to around 140-150rwkW and torque to 500nm
  • Installations with a larger intercooler , 3” exhaust, and upgraded injectors can yield up to 180rwkW and over 650nm at the wheels

GTurbo specifications

Toyota 1KDDesign BoostOperating RangeLow Torque (Nm)High Torque (Nm)Low Power (kW)High Power (kW)
Stock 123kW/343nm
Original9-127-16n/a343/410n/a92/98
G250287-30580650140185
G300347-37700800190230

04

Specifications

BrandGTurbo
SKUT T 1KD-FTV S2
Engine1KD-FTV
Weight10.0 kg
CategoriesTurbos

The workshop

Have it fitted in North Lakes.

Our workshop fits what we sell. Fitting is quoted separately from the parts, and we tell you what it involves before you commit.
