GTurbo

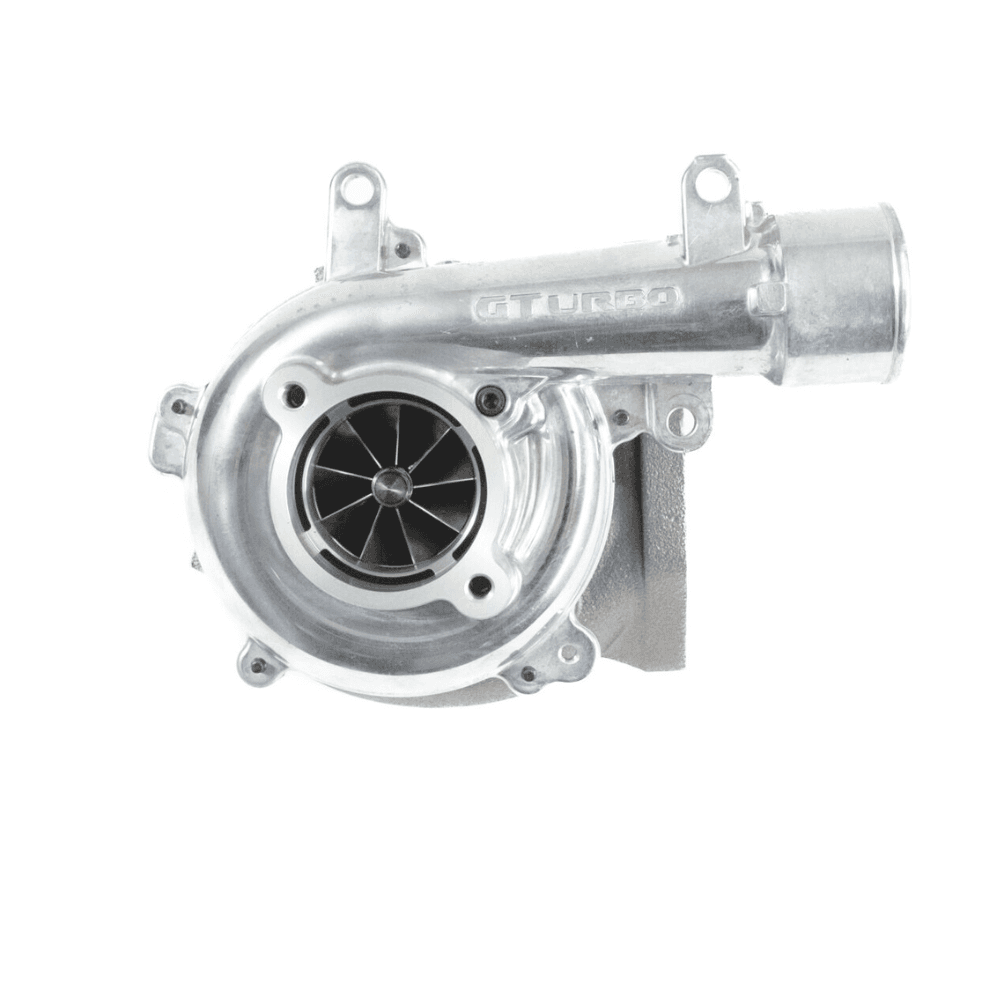

Toyota Hilux KD‑G300 Titan

In stock · dispatched in 1-3 days
$3,490.00

Includes $317.27 GST

SKU T T 1KD-FTV S3

1
Get a fitted quote

Type your postcode for the delivery price.

Not sure it fits your rig? Ask the workshop about this part.

Fits

  • Toyota Fortuner2005 to 2015
  • Toyota Hilux N702005 to 2015
  • Toyota Prado 120 Series2003 to 2009
  • Toyota Prado 150 Series2009 to 2015

01

Fitment

MakeModelYears
ToyotaFortuner2005 to 2015
ToyotaHilux N702005 to 2015
ToyotaPrado 120 Series2003 to 2009
ToyotaPrado 150 Series2009 to 2015

02

Description

Introducing the GTurbo KD-G300 Titan, the next generation in turbocharger technology, designed to deliver exceptional mid and top-end response while making class-leading power. This turbocharger, a refined upgrade from the G320 Gold, incorporates state-of-the-art advancements to maximise performance and reliability.

Key Features:

  1. Advanced Aerodynamics: Optimised for superior airflow and enhanced efficiency.
  2. Lower Inertia: Provides rapid spool times and instant throttle response.
  3. Super Alloy Base: Ensures exceptional strength and durability.
  4. Aerospace-Grade Coating: Reduces friction, resists high temperatures and corrosion, ensuring long-lasting performance.

Performance Expectations

The KD-G300 Titan turbocharger targets excellent mid and top-end response, capable of exceeding the performance of modified six-cylinder and V8 engines. It features a high-flow turbine wheel, larger and more efficient compressor wheel, upgraded thrust bearings, a 30% stronger main shaft, and a high-temperature-rated VNT system. Designed for a boost of 34psi, it operates efficiently from 10-37psi.

With the standard injection pump and +60% GTurbo injectors, expect power increases to around 180-220rwkW and torque to over 700nm. Installations with a high-flow injection pump or overdrive kit, large intercooler, 3” exhaust, and upgraded injectors can achieve up to 230rwkW and over 900nm at the crankshaft.

Packages

  • KD-G300 Titan Turbo: $3490
  • Complete Drive-in/Drive-out Packages: Available upon request

Common supporting modifications include an exhaust upgrade, front mount intercooler, upgraded Airbox, and high-flow injectors. Manual gearboxes require a top-spec clutch, and automatic gearboxes require a shift kit. These are available through GTurbo in Perth or any of our agents nationally. Contact us to discuss the best upgrade options for your vehicle.

  • 1 Year Warranty on all products.
  • Additional costs apply for tuning and installation.

Upgrade to the GTurbo KD-G300 Titan and experience the pinnacle of turbocharger performance.

-Turbo doesn't include a stepper motor or gaskets.

Toyota 1KDDesign BoostOperating RangeLow Torque (Nm)High Torque (Nm)Low Power (kW)High Power (kW)
Stock 123kW/343nm
Original9-127-16n/a343/410n/a92/98
G250287-30580650140185
G300347-37700800190230

03

GTurbo figures

GTurbo figures

GTurbo's published figures for this part.

Up to 180 kW and 700 Nm at the wheels with the rest of the build on the 4WD and +60% injectors.

Turbo sizeG300
Design boost34 psi
Operating range10 to 37 psi
Power at the wheelsup to 180 kW and 700 Nm at the wheels

From GTurbo

  • With the standard injection pump and +60% GTurbo injectors , expect power increases to around 180-220rwkW and torque to over 700nm

GTurbo specifications

Toyota 1KDDesign BoostOperating RangeLow Torque (Nm)High Torque (Nm)Low Power (kW)High Power (kW)
Stock 123kW/343nm
Original9-127-16n/a343/410n/a92/98
G250287-30580650140185
G300347-37700800190230

04

Specifications

BrandGTurbo
SKUT T 1KD-FTV S3
Engine1KD-FTV
Weight10.0 kg
CategoriesTurbos
