Tier One 80 Series Roof Rack Rear Wing

We’re excited to offer the Tier One 80 series Roof Rack Rear Wing

Please note the rail sides and crossbars are sold separately.

We’re excited to announce that our 80 Series Wings are now available in a premium stainless steel option.
This variant uses 304 stainless as the base material, then receives the same satin black powder-coat finish as our standard rails: delivering a higher-end, longer-lasting version of our proven design while keeping the clean Tier One look you know.

Structurally identical and fully compatible with all existing rear wings and crossbars, the stainless option is simply a premium upgrade for those wanting the best materials from the ground up.

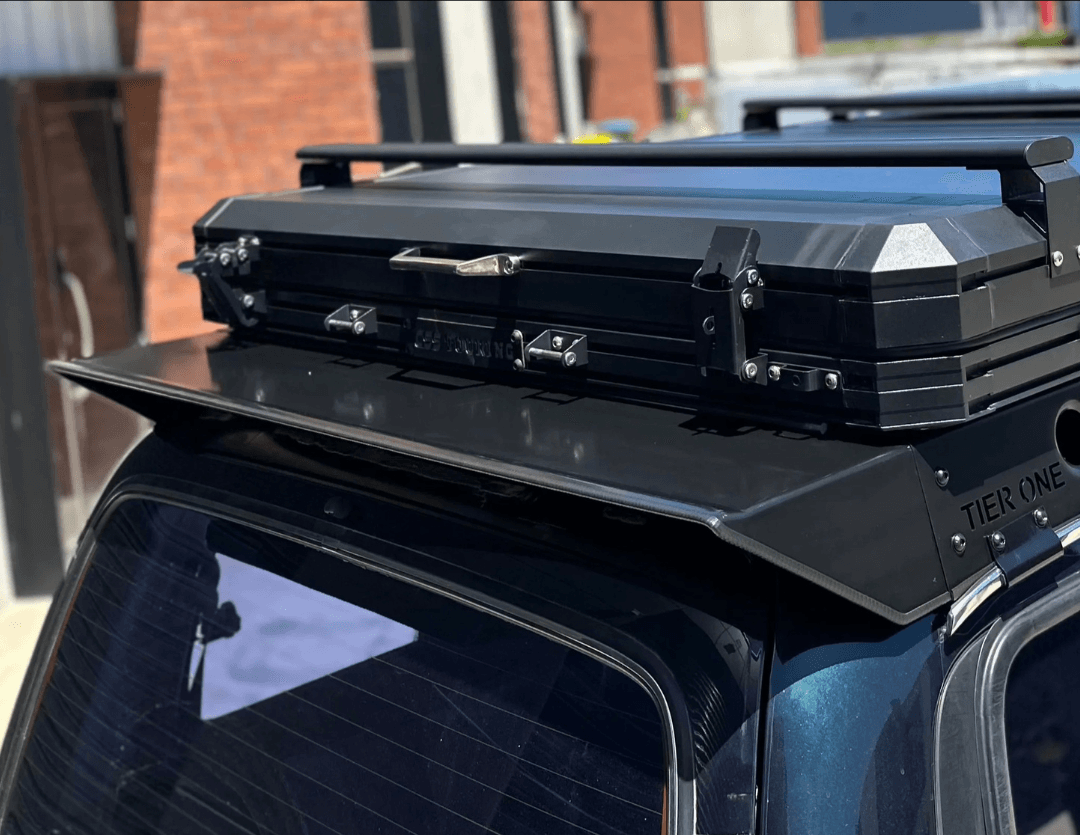

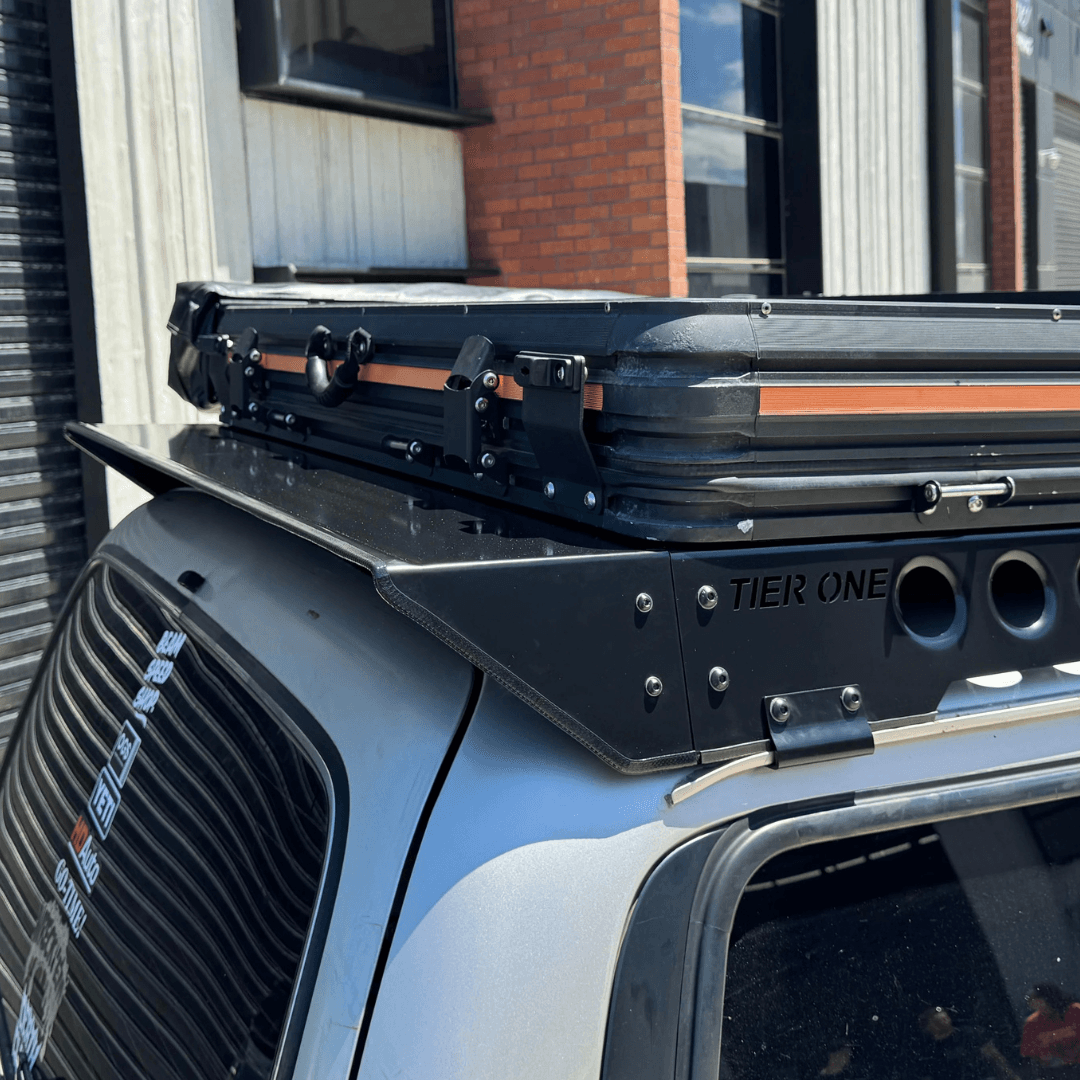

The Tier One Metalworks Rear Wing is the perfect add-on to our Roof Rack Rails, completing your setup with a seamless and functional finish.
Just like our rails, it’s 100% Australian-made and engineered for strength, precision, and durability in the harshest Aussie conditions.

The rear wing connects directly to the side rails via two mounting plates, forming a continuous platform that ties the entire system together. It not only looks clean and finished but also serves a practical purpose: helping stop that dreaded rain gap between your tent and awning when you’re set up camping.
It’s designed so that when running a 270° awning, the awning can overlap the wing, preventing water from dripping through and adding additional support to your setup.

We’ve added a folded gutter edge on the end of the wing. This not only adds structural strength but also channels water away from the opening and down the sides, keeping your setup dry and functional in all conditions.

The rear wing also doubles as a mounting point for LED strip lighting or other accessories, giving you flexibility to expand your setup as your needs grow.

Built from 2 mm mild steel, zinc-electroplated, and satin black powder-coated, the rear wing offers the same premium finish and corrosion protection as our rails.

Please note: the rear wings are not self-supporting and must be mounted either to one of our cross bars or directly to your rack or rooftop tent. If you're using our cross bars, we supply one specifically designed for this purpose: it comes fitted with three small tabs to bolt directly to the wing for a secure, integrated setup.

Note: The rear wing is sold separately and requires our Tier One Roof Rack Rails for installation.

Fitting Information

• Direct bolt-on to Tier One Roof Rack Rails
• Forms a continuous, seamless platform between rails
• Compatible with rooftop-tent and awning setups

Specifications

• Width: 1250mm at the top
• Length: 210mm from end of rails to outer edge
• Material: 2 mm Mild Steel
• Finish: Zinc Electroplated + Satin Black Powder Coat
• Hardware: 304 Stainless Steel
• Included: Rubber pinch weld and powder-coated black hardware
• Weight: 6 kg

Need Help?

Not sure if the rear wing is right for your setup?
Reach out: our team can confirm compatibility and help you decide whether to add it now or later.

Disclaimer

Use this product at your own risk. Tier One Metalworks is not liable for any damage or injury resulting from use or installation.
Always ensure correct installation and check with your rooftop-tent or awning manufacturer for compatibility.
