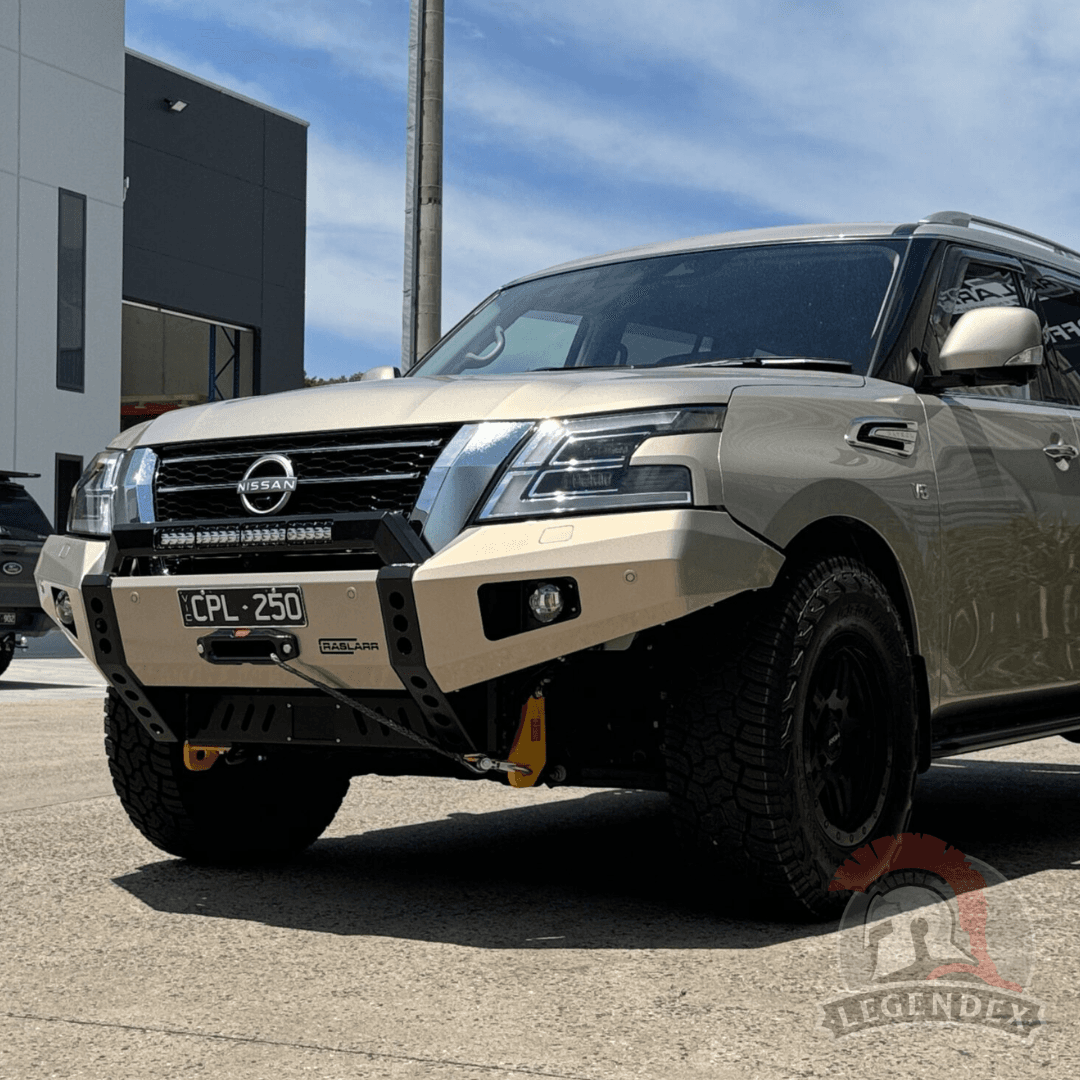

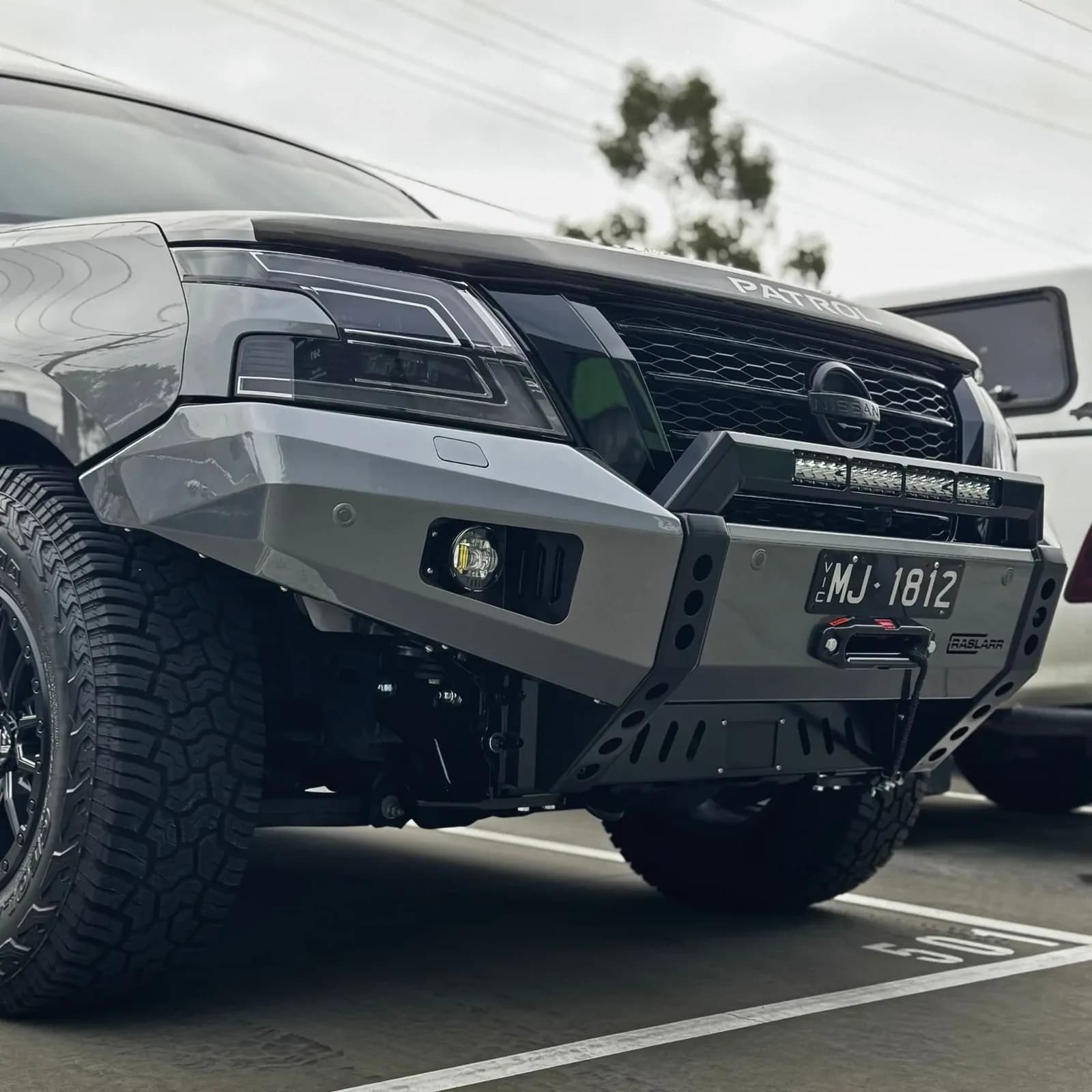

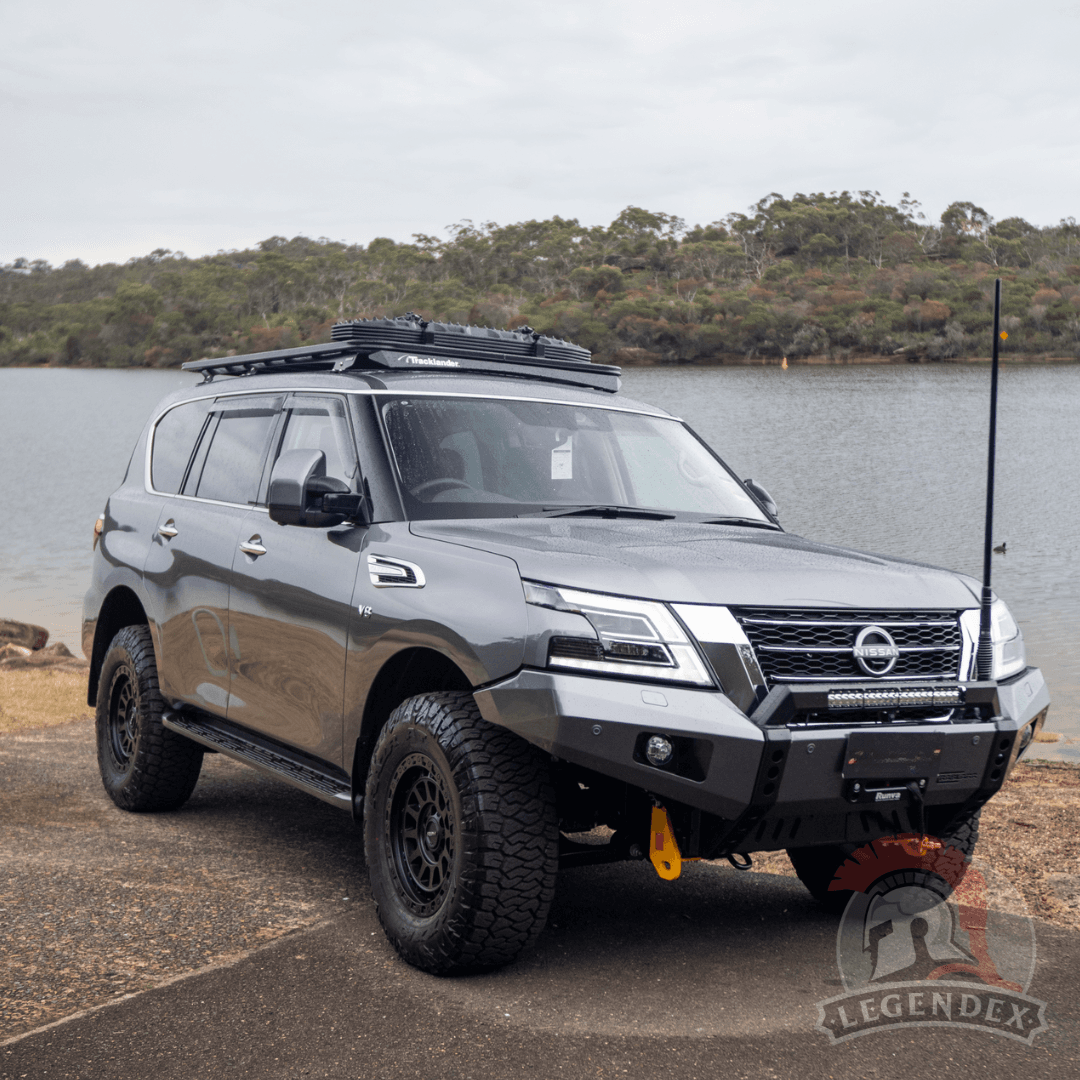

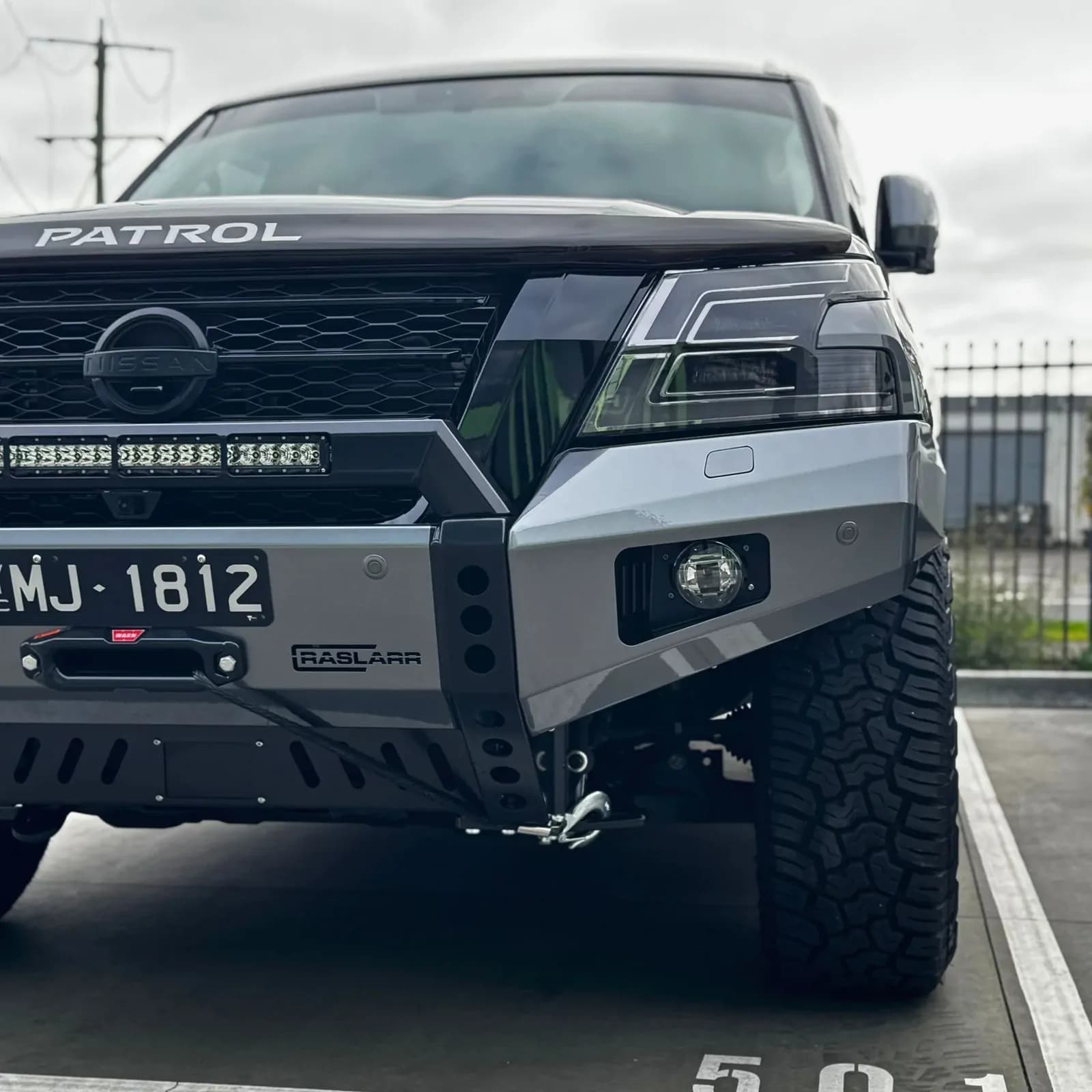

S5 Y62 Nissan Patrol Low Line (Winter) Raslarr Bull Bar

• Suits Series 5, all models; Ti, Ti-L & Warriors
  • Warriors will require trimming of the bash plates, flares clip off.
• These are a 3-piece design compared to our hooped variant (Dallas Bull Bar), which are a 1-piece
• ADR Compliant
• Light bar section is bolt-on with the ability to remove if not running or to run our 3 & 4 heavy duty light options (5mm)
• Comes with black Raslarr soft shackle Recovery points (as of May 2024)
• Capable of carrying low mount winches with a straight fairlead (not offset fairlead).
• Only fit slimline numbers plates, standard ones can be run with a flip up number plate bracket (not Raslarr)
• Plastic radar cover.

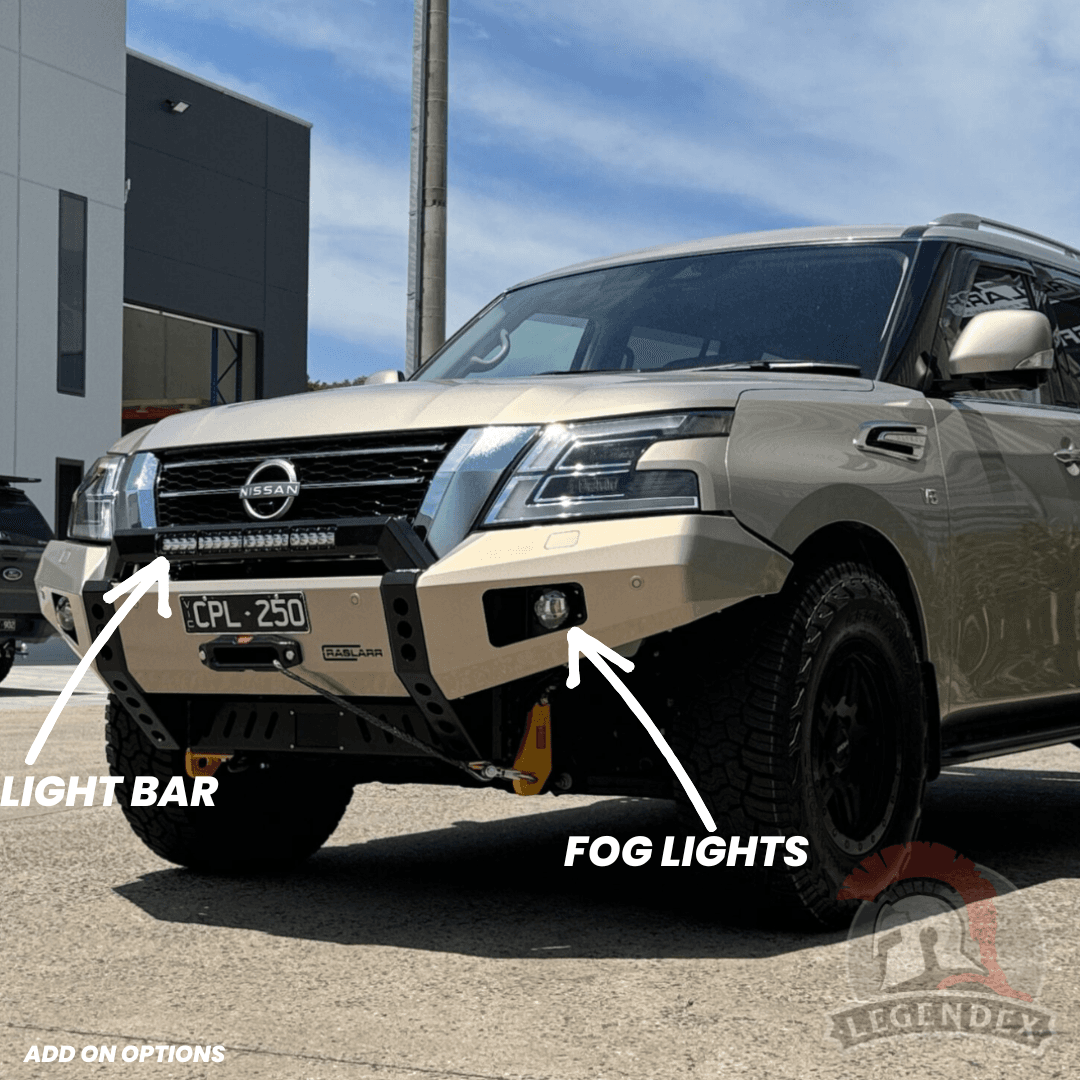

• Optional Stedi 21.5" light bar & fog lights.
  • Factory fog lights will not fit back into the bull bar.
• Will fit any Stedi round driving lights (and most other brands).
• 1 aerial hole in lightbar section.
• The main section is constructed from a combination of 6mm and 3mm mild steel.
• The wings are constructed from 3mm mild steel.
• Sensors and washer jets work with new bull bar fitted.
• Comes standard sandblasted, zinc primed & satin black powder coated
• Comes with all new hardware to mount your product.
• Colour coding options are available
• Manufactured all in-house at our factories in Lilydale VIC 3140

WEIGHT OF PRODUCT:
Complete bar (including mounting hardware & lightbar mount): 55.5kgs
Recovery Points & associated mounting bolts: 10kg
Total Weight of product (with recovery points): 65.5kgs
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 42.5kgs

Shipping and Professional Fitting
To arrange your shipping, please contact Legendex by phone at 07 3203 2333. Note that we can only ship this product to a commercial address. If a residential address is provided, we will contact you to request a commercial address. Alternatively, we can arrange delivery to the nearest depot based on your preference. Since the product ships from Melbourne, please be aware that store pick-ups in Brisbane will incur a freight fee.

Expert Fitting Service
Legendex offers professional fitting at our head office. Contact our team to discuss fitted pricing and ensure your product is installed correctly and to the highest standard.

Colour Coding

The Bull Bar comes standard sandblasted, zinc primed and powder coated in a satin black.
We can have the bar colour matched to your vehicle, we will require an image of your VIN-PLATE to do so (We will contact you if you have selected colour coding).

Time Frame
Many of our products are made to order. Once an order is placed, production may commence, therefore orders cannot be cancelled or refunded.
Build times can vary depending on demand and product type. To get the most accurate and up-to-date build time or ETA, please contact our team on 07 3203 2333.
