Suzuki Jimny Azza Raslarr Bull Bar

• Suits JB74 (current) models only
• Will not fit pre 2019 or earlier models

• Comes standard with the Raslarr tube style bull bar look, with New Style Azza bar hoops.
• Can house most low mount winches, we recommend nothing larger than 12,000lb winches.
• Incorporated 3 tonne recovery hooks.
• Factory fog lights are refitted.
• Centre hoop & headlight hoops are made from 50mm OD tube with 3.2mm thickness.
• Bash plate and centre pan made from 4mm steel.
• 2 spotlight tabs on LHS, both slotted.

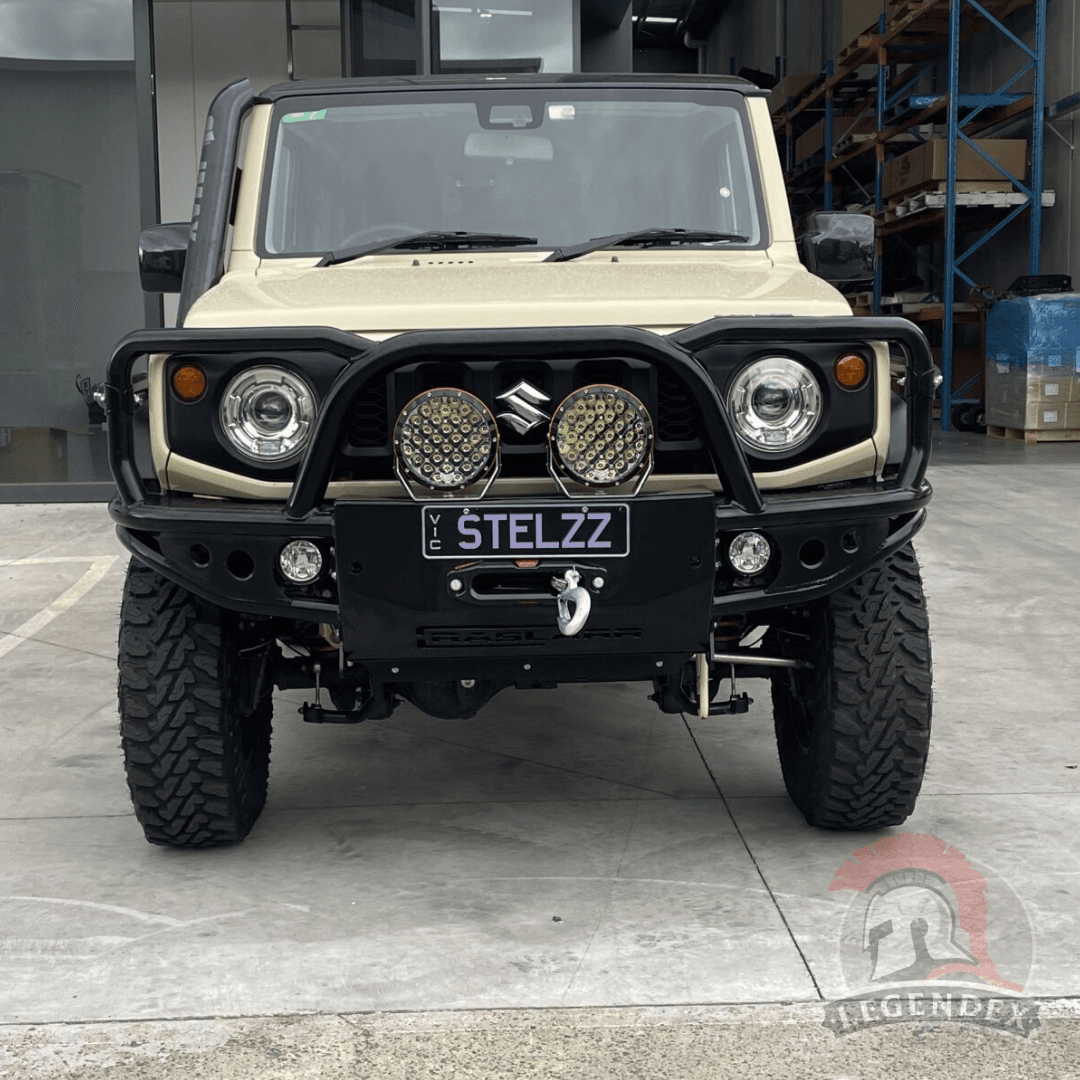

• Can fit up to 9" spotlights within centre hoop (7" spotlights are fitted on the Beige Jimny).
• 20mm laser cut holes to allow for fitment of 20mm eyebolt recovery hooks. Just ensure these are rated hooks that you are using.
• Comes standard sandblasted, zinc primed & satin black powder coated
• Comes with all new hardware to mount your product.
• Colour coding options are available
• Manufactured all in-house at our factories in Lilydale VIC 3140

WEIGHT OF PRODUCT: 34-36kgs (approximately)
Bar weight: 33kgs
Mounting, recovery point & optional lower bash plate: 12kgs
Removal of misc parts: 9kgs
NET BAR REPLACEMENT WEIGHT: 36kgs

Shipping and Professional Fitting
To arrange your shipping, please contact Legendex by phone at 07 3203 2333. Note that we can only ship this product to a commercial address. If a residential address is provided, we will contact you to request a commercial address. Alternatively, we can arrange delivery to the nearest depot based on your preference. Since the product ships from Melbourne, please be aware that store pick-ups in Brisbane will incur a freight fee.

Expert Fitting Service
Legendex offers professional fitting at our head office. Contact our team to discuss fitted pricing and ensure your product is installed correctly and to the highest standard.

Colour Coding

The Bull Bar comes standard sandblasted, zinc primed and powder coated in a satin black.
We can have the bar colour matched to your vehicle, we will require an image of your VIN-PLATE to do so (We will contact you if you have selected colour coding).

Time Frame
Many of our products are made to order. Once an order is placed, production may commence, therefore orders cannot be cancelled or refunded.
Build times can vary depending on demand and product type. To get the most accurate and up-to-date build time or ETA, please contact our team on 07 3203 2333.
