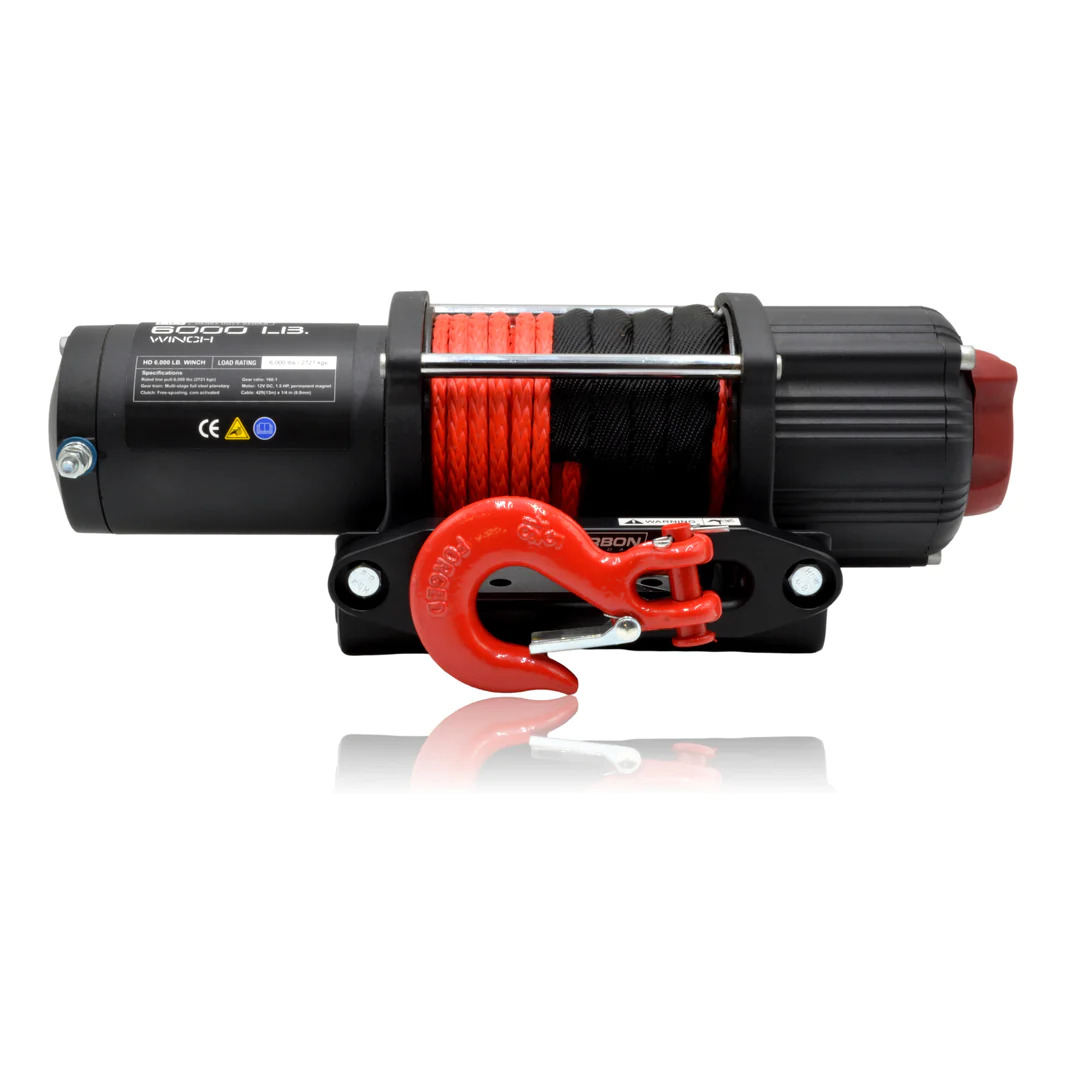

The Carbon Offroad Tank 6000 lb Capacity winch for small 4wds, caravans, trailers, boats.

A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an exisitng pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.

Features and Benefits

  • Sealed motor and geartrain allows for flawless operations in extreme conditions
  • Permanent magnet motor provides heavy duty torque for increased pulling power
  • Cam action disengages gears for near silent free-spooling
  • Mechanical and dynamic brake offers increased control and prevents rollback

Specification for CW-TK6

  • Part number: CW-TK6
  • Rated line pull: 6,000 lbs, (2721kg) single-line
  • Motor: 12V DC 1.5HP motor
  • Geartrain: 3 Stage Planetary
  • Gear Ratio: 166:1
  • Clutch: Freespooling, Cam activated
  • Synthetic Rope: 42 ft (13m) x 1/4 in (6.0mm)
  • Fairlead: Aluminium Hawse
  • IP Rating: IP66 - Winch and Controls (Except remote switch)
  • Winch Dimensions ( L x W x H ): 13.8 x 4.5 x 4.7in (350.5 x 115 x 120mm)
  • Mounting Bolt Pattern: 3.0 x 6.59in (76mm x 167mm)
  • Packing Dimensions( L x W x H ): 19.7 x 12.1 x 7.28in (500 x 307 x 185mm)
  • Shipping Weight: 12.2kg
SKU CW-TK6
Brand Carbon
Shipping Weight 15.0000kg
Shipping Width 0.600m
Shipping Height 0.185m
Shipping Length 0.307m
Shipping Cubic 0.034077000m3
